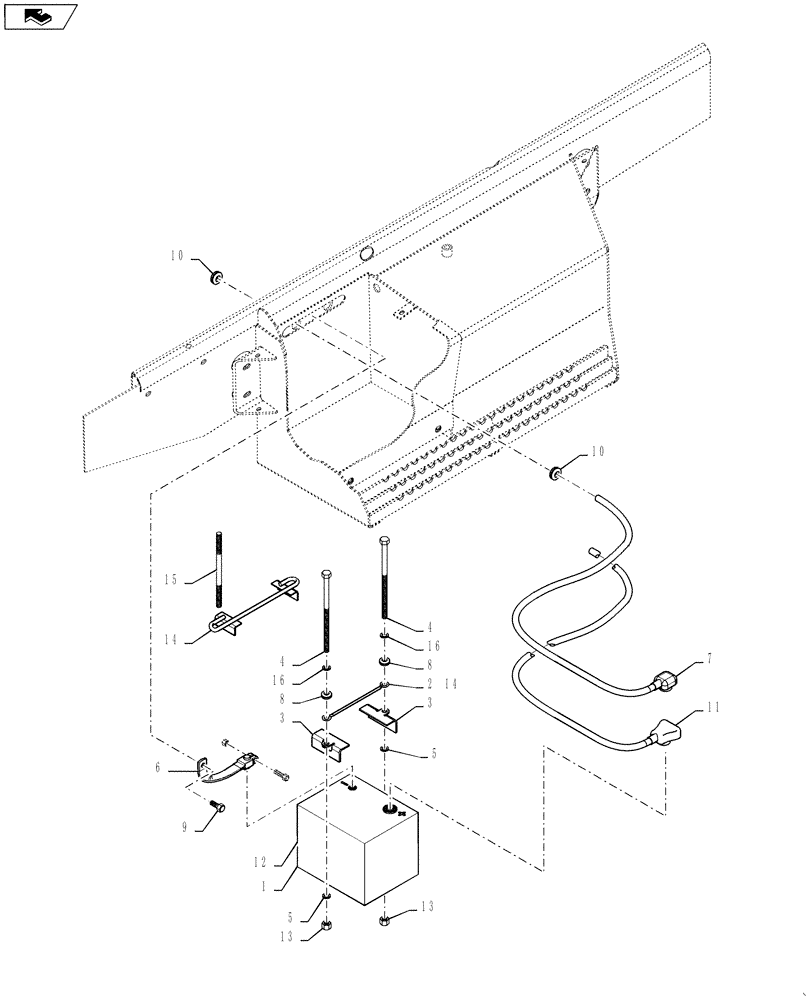

Запчасти Case IH 586H (55.302.02) - SINGLE BATTERY INSTALLATION - W/O COLD START (55) - ELECTRICAL SYSTEMS

1

84374315

WET BATTERY

12 Volt

1шт.

2

D55561

RETAINER

Bracket

1шт.

3

D125079

BRACKET

Angle, Hold Down

2шт.

4

814-10245

BOLT,Hex, M10 x 1.5 x 245mm, Cl 8.8

2шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

6

D83485

CABLE,300mm L

Ground

1шт.

7

144171A1

CABLE

Positive Cable

1шт.

8

87493906

GROMMET

Black

1шт.

9

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

1шт.

10

257279A1

GROMMET

Rubber

2шт.

11

87421697

ELECTRIC CABLE

Positve, Use in Brazil Only

1шт.

12

147764A1

WET BATTERY

12 Volt, Use in Brazil Only

1шт.

13

825-1408

NUT,M8, Cl 8

2шт.

14

75259613

SUPPORT

Use in Brazil Only

1шт.

15

75248827

THREADED ROD

Hold Down Rod, Use on Brazil Only

2шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Use in Brazil Only

2шт.

17

47450036

Positive Battery Terminal (Not Shown)

BOOT

1шт.
