(55.101.03) - ROPS HARNESS ASSEMBLY

Запчасти Case IH 586H (55.101.03) - ROPS HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

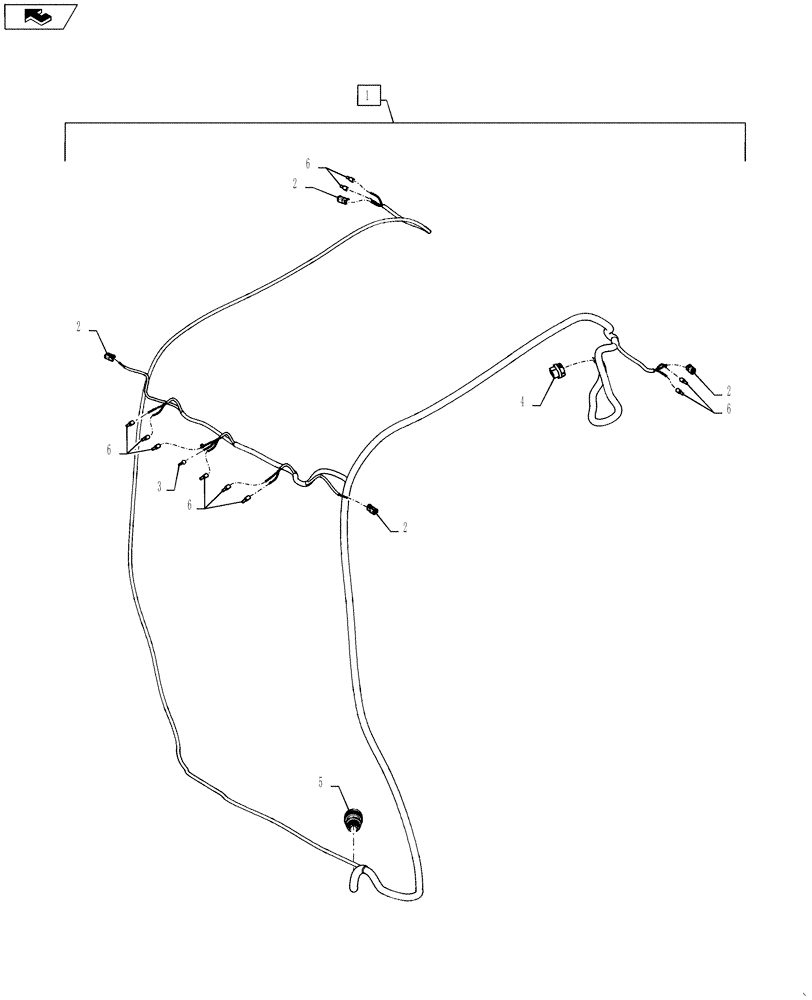

Схема запчастей Case IH 586H - (55.101.03) - ROPS HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS
3
6
4
6
6
2
6
2
1
2
2
home
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84526789

Incl 2 - 6

WIRE HARNESS

1шт.

2

87696093

ELEC CONNECTOR,Female, 2 Cavities

Front & Rear Work & Signal Light

4шт.

2

87696145

LOCKING TAB

Secondary

4шт.

3

84120008

TERMINAL CONNECTOR,Female, 1 Cavity

Break Light, Ground

3шт.

4

82028495

MULTIPOLE CONNECTOR,Female, 34 Pole

to Instrument Cluster

1шт.

5

87704526

ELEC CONNECTOR

to Main Harness

1шт.

6

84120010

TERMINAL CONNECTOR,Female, 1 Cavity

Front & Rear Work Light

9шт.
