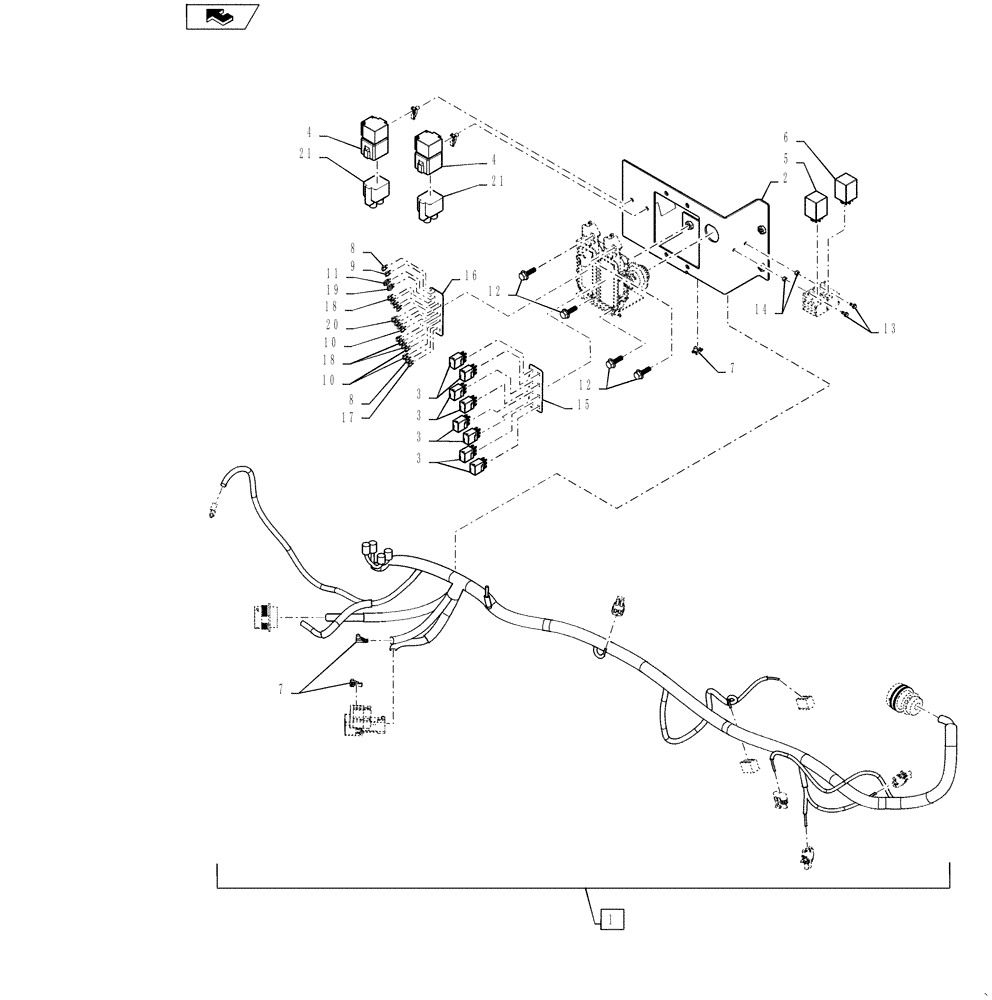

Запчасти Case IH 586H (55.100.01[01]) - CAB HARNESS MAIN (55) - ELECTRICAL SYSTEMS

1

84522727

Main Cab Incl 2 - 21 and Fig. 55.101.01 (02), Years: -01-JUN-13

WIRE HARNESS

1шт.

1

47489893

, Start Year: 01-JUN-13

WIRE HARNESS

1шт.

2

84386676

Harness

BRACKET

1шт.

3

87655334

RELAY,12V, 35A, Micro

(Used for SAHR Park Break, SAHR Park Brake Trans Cutout, Starter, Power #1, #2, #3, #4, Comfort Steer, Fwd, Neutral, Reverse, Trans De-clutch, Lighting, A/C)

9шт.

4

84271717

RELAY,12V, 50A

(Used for Power #1 & #2, ECU B+)

2шт.

5

347706A3

RELAY,12V, 5A

Sealed Time Delay

1шт.

6

87578455

RELAY,12V, Turn Signal and Hazard

(Used for Flasher, Hazzard, Turn Signal)

1шт.

7

87707841

Mounting

CLIP,Hole DIA 6.35mm

3шт.

8

121412A1

FUSE,10A, Mini, Red

(Used for ECU B+, Front/Rear Wiper/Washer, Pilot Ctl, A/C, Key Switch, Quick Coupler, EH Clam, Radio)

2шт.

9

121410A1

FUSE,5A, Mini, Tan

(Used for Tail Light, Dome Light, High Beam, Beacon, Radio B+, Horn, Trax B+, 2WD Ride Control, SAHR Brake, Comfort Steer, Powerlift, ECU B+, Instrument Cluster, Telematics)

7шт.

10

121416A1

FUSE,30A, Mini, Green

(Used for Cigarette Lighter, Blower Motor, Customer B+, Customer Key On)

3шт.

11

84292399

Key (Used for Fwd/Reverse Signal)

KEY

2шт.

12

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

4шт.

13

87301687

SCREW,HWH, #10 - 32 x 1/2"

2шт.

14

231-24409

NUT,#10-32

2шт.

15

84290787

Relays

DECAL

1шт.

16

84483694

Fuses, Diodes and Relays

LABEL

1шт.

17

121414A1

FUSE,20A, Mini, Yellow

(Used for Starter, Air Seat, ECU B+)

1шт.

18

121411A1

FUSE,7.5A, Mini, Brown

(Used Trans Diff Lock, 4WD Auto Ride Ctl, Turn Signal, Hazzard, ECU B+)

3шт.

19

416569A1

DIODE ELEMENT,7300W

Bussman 280 Series (Used for Quick Coupler, Fwd/Reverse Signal, Torque Control)

2шт.

20

121413A1

FUSE,15A, Mini, Blue

(Used for Side/Head/Front Work Lights)

1шт.

21

NSS

NOT SOLD SEPARAT

Mounting Clip Incl in 1

2шт.
