Запчасти Case IH 586H (41.200.01) - STEERING HYDRAULIC LINES AND FITTINGS (41) - STEERING

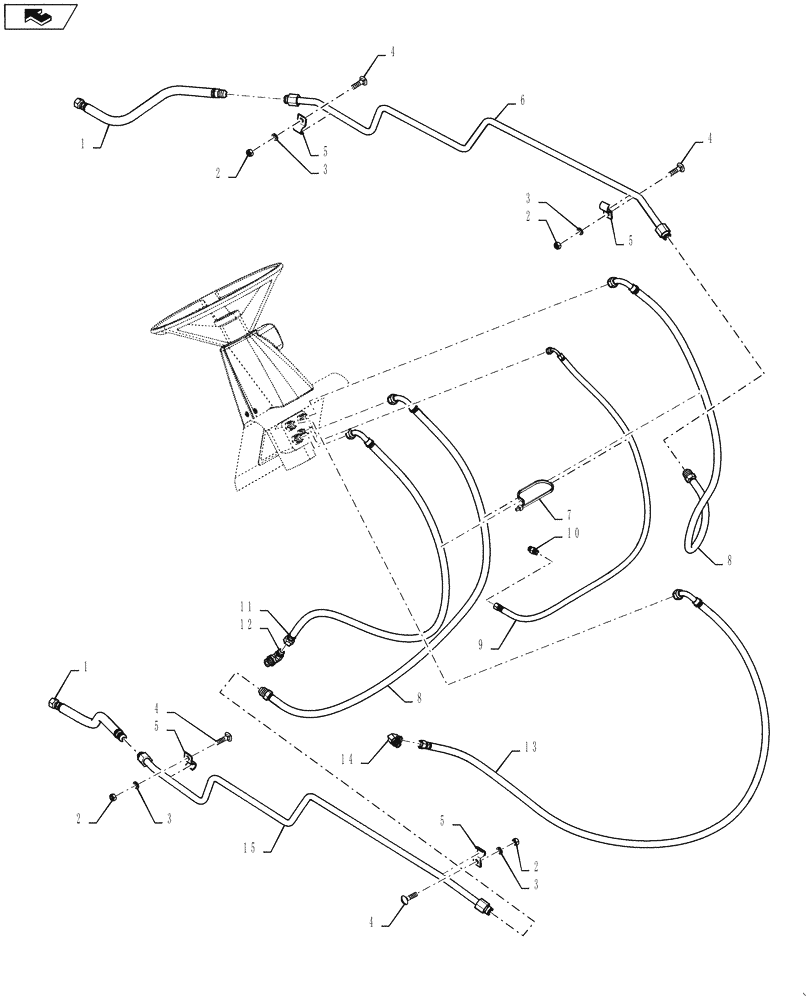

Схема запчастей Case IH 586H - (41.200.01) - STEERING HYDRAULIC LINES AND FITTINGS (41) - STEERING
5
9
3
2
5
2
3
1
5
4
4
12
1
3
15
3
6
14
8
4
11
5
home
2
10
7
2
4
13
8

Артикул

Название

Примечание

Количество

1

144219A1

HOSE,9.53mm ID x 485mm L

Steering

2шт.

2

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

3

892-11010

LOCK WASHER,M10

4шт.

4

711-10040

CARRIAGE BOLT,Short NK, M10 x 40, Cl8.8, Full Thd

4шт.

5

84134973

PIPE CLAMP

5/8 Diameter

4шт.

6

87484606

HYD TUBE,.625" OD

Left Hand Steering

1шт.

7

L18331

CABLE TIE,375.9mm L, Nylon, Black

15 Inch Nylon

1шт.

8

338509A1

HOSE,9.53mm ID x 1350mm L

Steering

2шт.

9

338506A1

HOSE,6.35mm ID x 1200mm L

Steering Load Sense

1шт.

10

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl O-Ring

1шт.

11

338507A1

HOSE,9.53mm ID x 1350mm L

Steering Pressure

1шт.

12

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl O-Ring

1шт.

13

338508A1

HOSE,9.53mm ID x 1900mm L

Steering to Tank

1шт.

14

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

Incl O-Ring

1шт.

15

87484601

HYD TUBE,.625" OD

Right Hand Steering

1шт.

Выбрано товаров: 15
