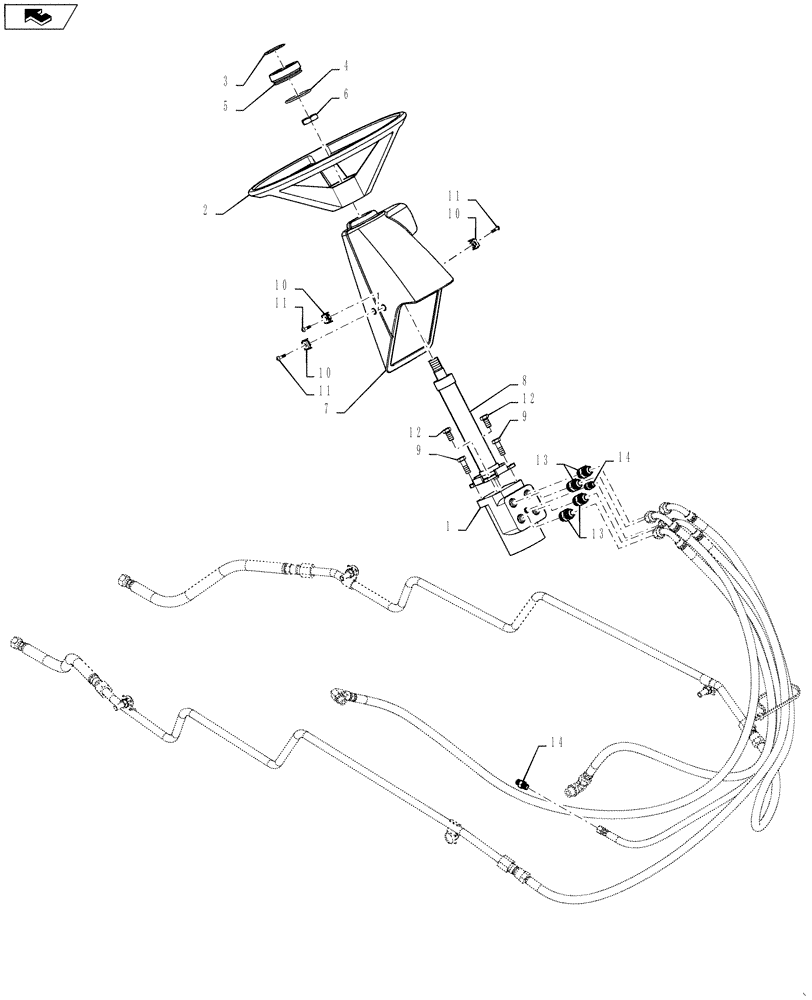

Запчасти Case IH 586H (41.101.01) - STEERING COLUMN AND STEERING WHEEL INSTALLATION (41) - STEERING

1

84423140

PUMP

95 Disp

1шт.

2

A65544

STEERING WHEEL

3 Spokes

1шт.

3

84498473

Case Construction, 50mm

DECAL

1шт.

4

238-5227

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

1шт.

5

114882A2

CAP,Polystyrene

Steering Wheel

1шт.

6

1959509C1

NUT,Hex, M20 x 5, RH

M20

1шт.

7

332206A1

COVER

Steering Column

1шт.

8

328875A1

STEERING ASSY

Column

1шт.

9

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

10

84326221

Spring

NUT

3шт.

11

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

3шт.

12

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

13

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl O-Ring

4шт.

14

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl O-Ring

2шт.
