(39.140.01) - COUNTERWEIGHT INSTALLATION

Запчасти Case IH 586H (39.140.01) - COUNTERWEIGHT INSTALLATION (39) - FRAMES AND BALLASTING

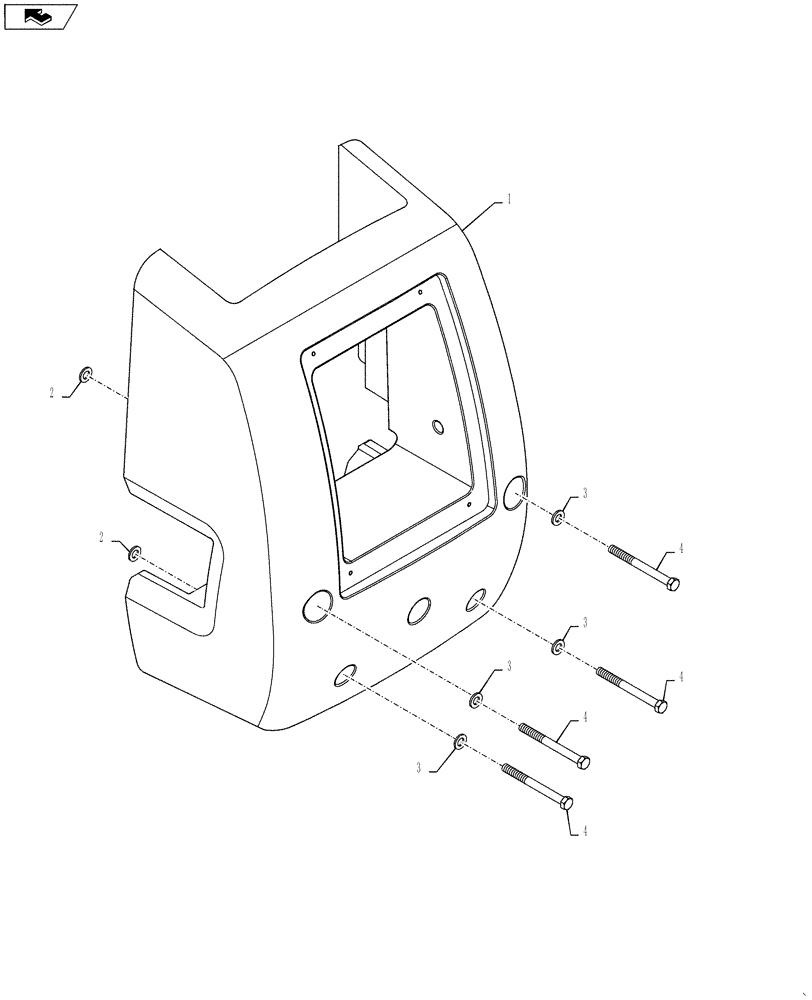

Схема запчастей Case IH 586H - (39.140.01) - COUNTERWEIGHT INSTALLATION (39) - FRAMES AND BALLASTING
3
home
4
4
2
2
4
3
3
3
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84562282

6000 Lbs., For 586H

COUNTERWEIGHT

1шт.

1

84562280

8000 Lbs., For 588H

COUNTERWEIGHT

1шт.

2

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

M20

2шт.

3

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

4шт.

4

413-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 5

4шт.
