(35.740.07) - CYLINDER ASSEMBLY MAST LIFT 6000 LB 22 FEET

Запчасти Case IH 586H (35.740.07) - CYLINDER ASSEMBLY MAST LIFT 6000 LB 22 FEET (35) - HYDRAULIC SYSTEMS

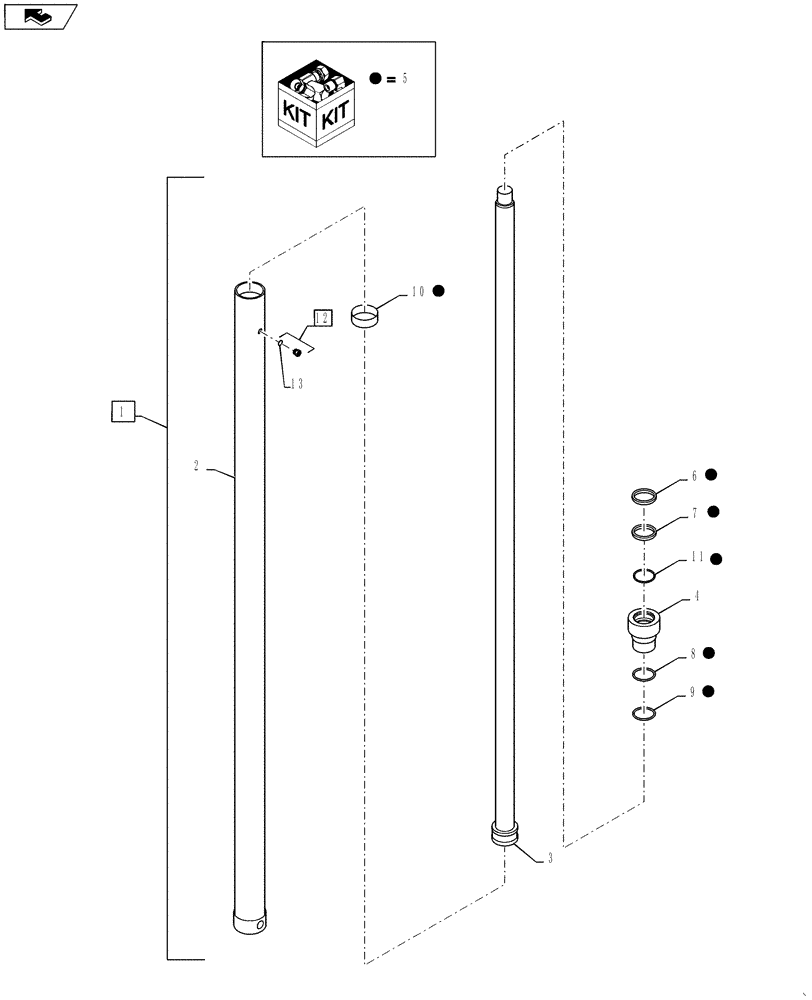

Схема запчастей Case IH 586H - (35.740.07) - CYLINDER ASSEMBLY MAST LIFT 6000 LB 22 FEET (35) - HYDRAULIC SYSTEMS
home
10
5
5
5
5
8
13
4
12
6
2
5
9
5
7
1
3
5
5
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

348743A1

CYLINDER ASSY.

Mast Lift, Freelift, Incl 2 - 12

1шт.

2

348744A1

TUBE

Tube Incl in 1

1шт.

3

348745A1

PISTON ROD

Incl Piston

1шт.

4

348746A1

NUT

Used On Mast With Serial Number(s) 6ULVR-2673-1098, 6ULVR-2815-1098, 702825-4432-999

1шт.

4

384720A1

NUT

Used on Mast Without Serial Number(s) 6ULVR-2673-1098, 6ULVR-2815-1098, 702825-4432-999

1шт.

5

348747A1

KIT

Seal, Incl 6 - 11

1шт.

6

348748A1

WIPER,74.8mm ID x 95.4mm OD

Wiper Incl in 5

1шт.

7

348749A1

CUP

Cup Incl in 5

1шт.

8

348750A1

RING

Ring Incl in 5

1шт.

9

348751A1

O-RING

O-Ring Incl in 5

1шт.

10

348752A1

RING

Ring Incl in 5

1шт.

11

360616A1

SEAL

Buffer Seal Incl in 5

1шт.

12

278548

PLUG,Hex, 7/16"-20 ORB

Incl 13

1шт.

13

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

O-Ring Incl in 12

1шт.
