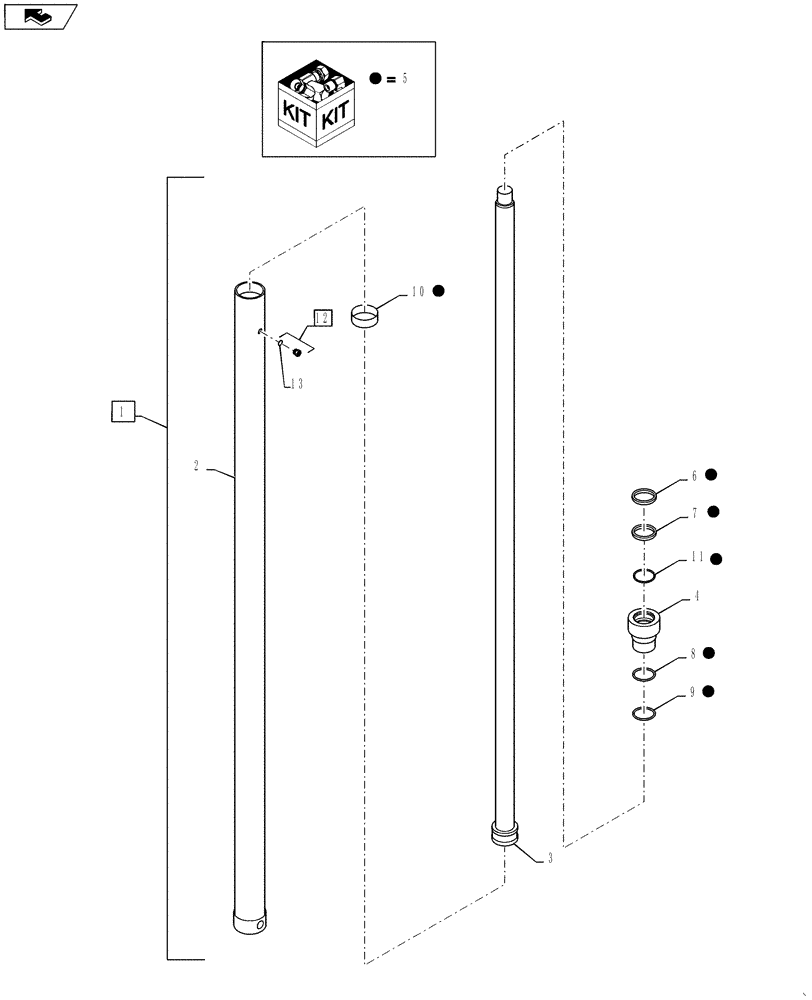

Запчасти Case IH 586H (35.740.04) - CYLINDER ASSEMBLY MAST LIFT 8000 LB 15 FEET (35) - HYDRAULIC SYSTEMS

1

341194A1

CYLINDER ASSY.

Rail, Mast Lift, Incl 2 - 13

2шт.

2

337759A1

TUBE

Tube Incl in 1

1шт.

3

337760A1

PISTON ROD

Incl Piston

1шт.

4

360618A1

NUT

Gland

1шт.

5

362347A1

KIT

Seal, Incl 6 - 11

1шт.

6

360619A1

WIPER

Wiper Incl in 5

1шт.

7

360620A1

CUP

Cup Incl in 5

1шт.

8

337769A1

BACK-UP RING

O-Ring Incl in 5

1шт.

9

337767A1

O-RING

Back Up Ring Incl in 5

1шт.

10

337770A1

WEAR RING

Wear Ring Incl in 5

1шт.

11

360617A1

SEAL

Buffer Seal Incl in 5

1шт.

12

278548

PLUG,Hex, 7/16"-20 ORB

Incl 13

1шт.

13

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Incl in 12

1шт.
