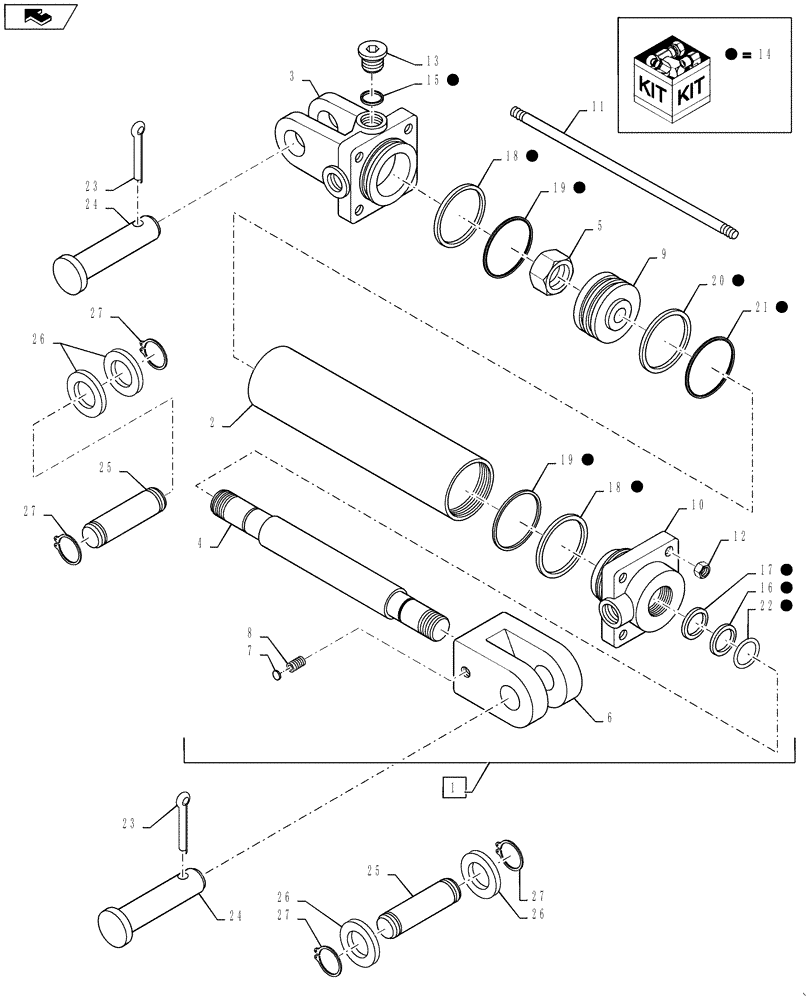

Запчасти Case IH 586H (35.740.01) - CYLINDER ASSEMBLY SIDESHIFT (35) - HYDRAULIC SYSTEMS

1

327149A1

CYLINDER,Double Acting, 31.75mm Rod, 152.4mm Stroke

2.5" Bore 1.25" Rod, Side Shift Incl 2 - 22

1шт.

2

NSS

NOT SOLD SEPARAT

2.5" Bore Side Shift Cylinder Tube Incl in 1

1шт.

3

1272766C1

HEAD

2.5" Bore 1" Pin Bore

1шт.

4

344529A1

SHAFT

1.25" Diameter

1шт.

5

H438714

LOCK NUT,7/8" - 14

Lock

1шт.

6

145233C1

CLEVIS,1/4" - 12

1" Pin Bore

1шт.

7

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

Nylon Set Screw

1шт.

8

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

1шт.

9

145221C3

PISTON

2.5" Bore 1.25" Rod Side Shift Cylinder

1шт.

10

1272767C1

CYLINDER END CAP

1.25" Rod

1шт.

11

341594A1

TRUSS ROD

7/16" - 14 Thread

4шт.

12

425-107

NUT,7/16"-14, G5

4шт.

13

143204A1

PLUG

3/4"-16 O-Ring

1шт.

14

79975C2

SEAL KIT

Kit Seal Replacement, Incl 15 - 22

1шт.

15

NSS

NOT SOLD SEPARAT

O-Ring Incl in 14

1шт.

16

NSS

NOT SOLD SEPARAT

Wiper Rod Incl in 14

1шт.

17

NSS

NOT SOLD SEPARAT

Seal Incl in 14

1шт.

18

NSS

NOT SOLD SEPARAT

Ring, Backup Incl in 14

2шт.

19

NSS

NOT SOLD SEPARAT

O-Ring Incl in 14

2шт.

20

NSS

NOT SOLD SEPARAT

Seal Incl in 14

1шт.

21

NSS

NOT SOLD SEPARAT

O-Ring Incl in 14

1шт.

22

NSS

NOT SOLD SEPARAT

O-Ring Incl in 14

1шт.

23

432-828

COTTER PIN,1/8" x 1 3/4"

4шт.

24

1266753C1

PIN,25.4mm OD x 96.83mm L

89mm

2шт.

25

D30609

PIN,25.4mm OD x 95.25mm L

1" Diameter 3 3/4" Length

2шт.

26

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

4шт.

27

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

1" Pin

4шт.
