Запчасти Case IH 586H (35.540.03) - HYDRAULIC LINES SPOOL VALVE TO SIDE SHIFT CYLINDER (35) - HYDRAULIC SYSTEMS

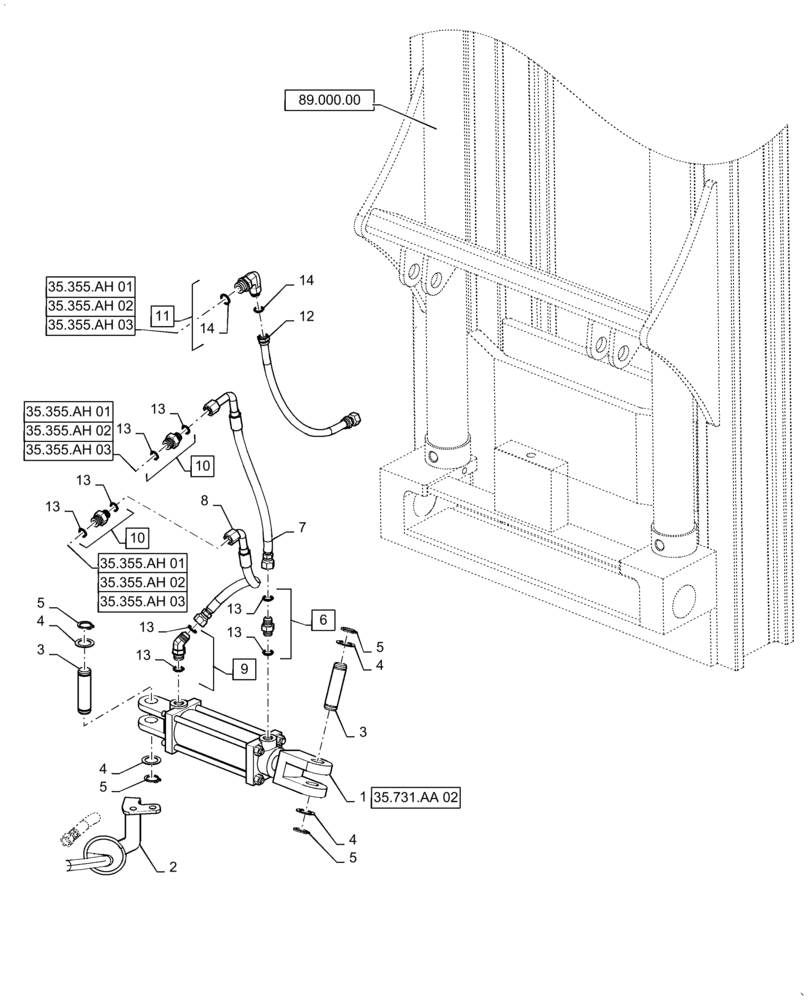

Схема запчастей Case IH 586H - (35.540.03) - HYDRAULIC LINES SPOOL VALVE TO SIDE SHIFT CYLINDER (35) - HYDRAULIC SYSTEMS
5
13
8
5
14
13
35.355.ah 02
13
4
13
1
35.355.ah 01
2
10
35.355.ah 03
10
11
12
35.355.ah 02
5
9
6
7
13
13
35.355.ah 02
4
35.355.ah 01
3
3
4
89.000.00
13
4
13
35.355.ah 03
35.355.ah 03
35.355.ah 01
14
5
35.731.aa 02

Артикул

Название

Примечание

Количество

1

327149A1

CYLINDER,Double Acting, 31.75mm Rod, 152.4mm Stroke

Side Shift

1шт.

2

47381996

BRACKET

Hose Support Right Side

1шт.

3

D30609

PIN,25.4mm OD x 95.25mm L

Pivot

2шт.

4

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

4шт.

5

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

4шт.

6

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl 13

1шт.

7

347912A1

HOSE,9.53mm ID x 500mm L

Valve To Shift Cylinder

1шт.

8

336547A1

HOSE,9.53mm ID x 475mm L

Valve To Shift Cylinder

1шт.

9

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl 13

2шт.

10

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl 13

4шт.

11

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl 14

1шт.

12

336653A1

HOSE,12.7mm ID x 900mm L

Valve To Lift Manifold

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

6шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Выбрано товаров: 14
