Запчасти Case IH 586H (35.540.02) - HYDRAULIC LINE SPOOL VALVE TO TILT CYLINDER (35) - HYDRAULIC SYSTEMS

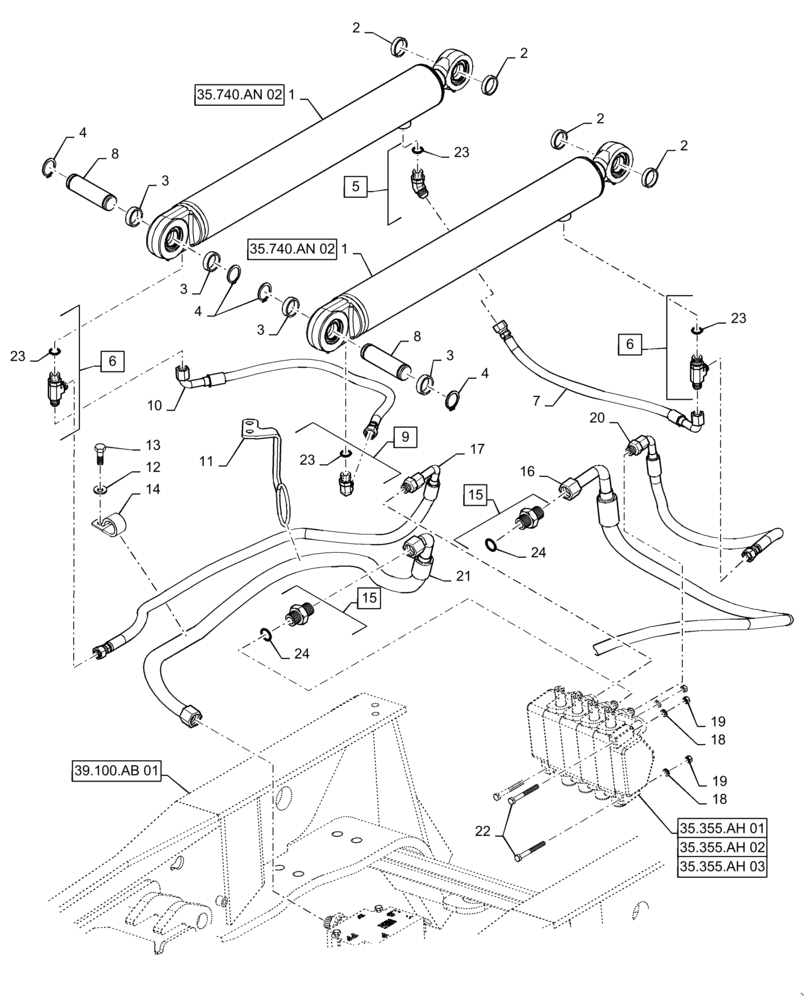

Схема запчастей Case IH 586H - (35.540.02) - HYDRAULIC LINE SPOOL VALVE TO TILT CYLINDER (35) - HYDRAULIC SYSTEMS
7
4
35.355.ah 01
16
3
12
35.355.ah 03
3
9
39.100.ab 01
1
2
19
24
2
8
15
19
24
10
18
8
14
23
5
11
13
23
2
18
35.740.an 02
21
35.355.ah 02
4
3
23
35.740.an 02
20
6
3
6
23
2
22
17
1
4
15

Артикул

Название

Примечание

Количество

1

84426790

Tilt

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 560mm Stroke

2шт.

2

353741A1

SPACER,38.10mm ID x 40.87mm OD x 8.5mm Thk

Tilt Cylinder

4шт.

3

353738A1

SPACER,38.10mm ID x 40.87mm OD x 10.5mm Thk

Tilt Cylinder

4шт.

4

103-16125

SNAP RING,#125, Ext

4шт.

5

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl 23

1шт.

6

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl 23

2шт.

7

338512A1

HOSE,9.53mm ID x 625mm L

Tilt Cylinder Crossover

1шт.

8

329697A1

PIN,31.70mm OD x 113.2mm L

Heat Treated

2шт.

9

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl 23

1шт.

10

87477286

HOSE ASSY.,10mm ID x 725mm L, SAE 100R16

Tilt Cylinder Crossover

1шт.

11

47381994

BRACKET

Hose Support Left Hand

1шт.

12

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

9шт.

13

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

9шт.

14

515-25254

CLAMP,1", Insul, 1/2" Bolt

1шт.

15

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl 24

2шт.

16

347910A1

HOSE,19.05mm ID x 1700mm L

Return, Valve to Filter

1шт.

17

338510A1

HOSE,12.7mm ID x 1200mm L

Valve (Port D) To Tilt Cylinder Head

1шт.

18

892-11008

LOCK WASHER,8mm ID

5шт.

19

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

5шт.

20

338511A2

HOSE ASSY.,12.7mm ID x 625mm L

Valve (Port E) To Tilt Cylinder Rod (Hose with 90 deg Bend)

1шт.

Hose with 90 deg Bend Replaced by Straight Hose 47835628 and Elbow 218-5230

1шт.

20

47835628

Straight Hose

HYDRAULIC HOSE,12.5mm ID x 600mm L, SAE 100R2

1шт.

20

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

21

347911A1

HOSE,19.05mm ID x 1250mm L

Valve (Port A) to Priority Valve, Power Beyond 2 Spool

1шт.

22

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

3шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

24

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.
