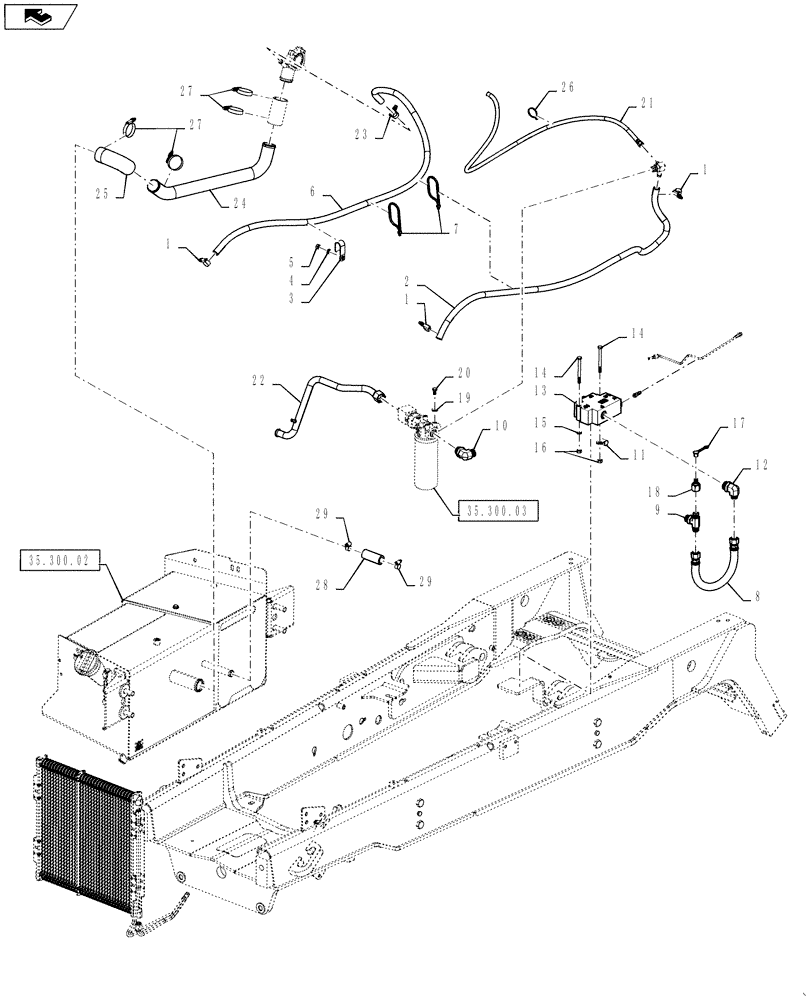

Запчасти Case IH 586H (35.540.00) - HYDRAULIC LINE INSTALLATION (35) - HYDRAULIC SYSTEMS

1

328186A1

HOSE CLAMP,400mm L

Constant Torque

2шт.

2

84497367

To Cooler

HOSE

1шт.

3

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

25.4 DIA

1шт.

4

892-11010

LOCK WASHER,M10

1шт.

5

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

6

87741914

HOSE,15.88mm ID x 1920mm L, SAE 100R16

Cooler To Pump

1шт.

7

L18331

CABLE TIE,375.9mm L, Nylon, Black

Nylon 15 Inch

2шт.

8

87741915

HOSE ASSY.

Pump Outlet To Priority

1шт.

9

218-5185

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl O-Ring

1шт.

10

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl O-Ring

1шт.

11

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

12

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl O-Ring

1шт.

13

87548326

HYDRAULIC VALVE

Flow Divider

1шт.

14

814-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

2шт.

15

892-11008

LOCK WASHER,8mm ID

5шт.

16

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

5шт.

17

H434163

DUST CAP

For Coupler

1шт.

18

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

Nipple

1шт.

19

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

M10

9шт.

20

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

9шт.

21

131676A1

HOSE,7.94mm ID x 1590mm L

Brake Fill

1шт.

22

84484539

Return Filter To Tank

TUBE

1шт.

23

328186A1

HOSE CLAMP,400mm L

Torque

4шт.

24

84348013

Suction

HYD TUBE

1шт.

25

282497A1

HYDRAULIC HOSE,51.00 mm ID x 102.00 mm, SAE 30R7

1шт.

26

L11541

CABLE TIE,203.2mm L, Nylon

7 - 8 Inch Black Nylon

1шт.

27

259044A1

CLAMP

Hose

4шт.

28

D38435

HOSE,1" ID x 1 1/2" OD 3.5" L

Return Tube Coupler

1шт.

29

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1шт.
