Запчасти Case IH 586H (35.355.03) - VALVE CONTROL FORK LIFT FOUR SPOOL (35) - HYDRAULIC SYSTEMS

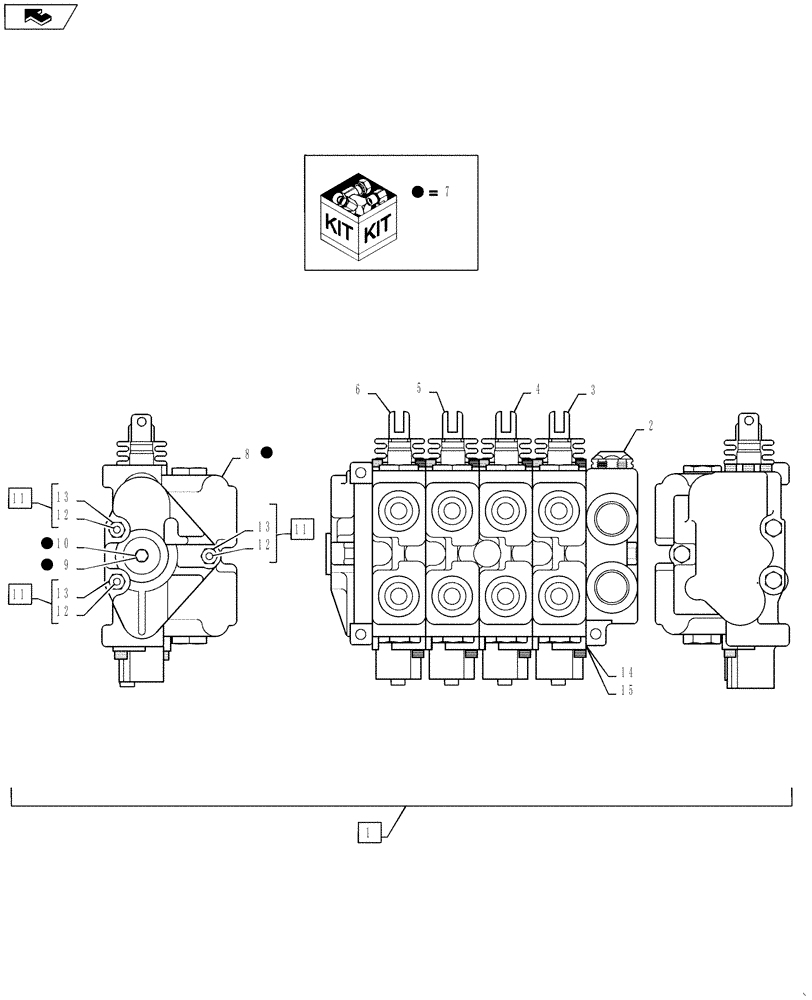

Схема запчастей Case IH 586H - (35.355.03) - VALVE CONTROL FORK LIFT FOUR SPOOL (35) - HYDRAULIC SYSTEMS
13
7
11
12
3
5
7
11
8
1
12
13
2
15
7
6
14
9
4
7
12
10
7
13
home
11

Артикул

Название

Примечание

Количество

1

356884A1

VALVE, CONTROL

Forklift Control, Four Spool, Incl 2 - 15

1шт.

2

360519A1

HYD VALVE SECTION

Inlet

1шт.

3

360520A1

HYD VALVE SECTION

Lift

1шт.

4

358661A1

HYD VALVE SECTION

Tilt

1шт.

5

360521A1

HYD VALVE SECTION

Side Shift, With Work Port Restrictors

1шт.

6

375759A1

HYD VALVE SECTION

Auxiliary, Without Work Port Restrictor

1шт.

7

348719A1

COVER

End Cover Kit Incl 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

Housing Incl in 7

1шт.

9

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Incl 10

1шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11

348721A1

PACKAGE, REPAIR

Incl 12,13

1шт.

12

NSS

NOT SOLD SEPARAT

Bolt Incl in 11

3шт.

13

425-106

NUT,3/8"-16, Cl 5

3шт.

14

238-5119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

Between sections

15шт.

15

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

Between Sections

5шт.

Выбрано товаров: 15
