Запчасти Case IH 586H (35.350.01) - ACCUMULATOR ASSEMBLY (35) - HYDRAULIC SYSTEMS

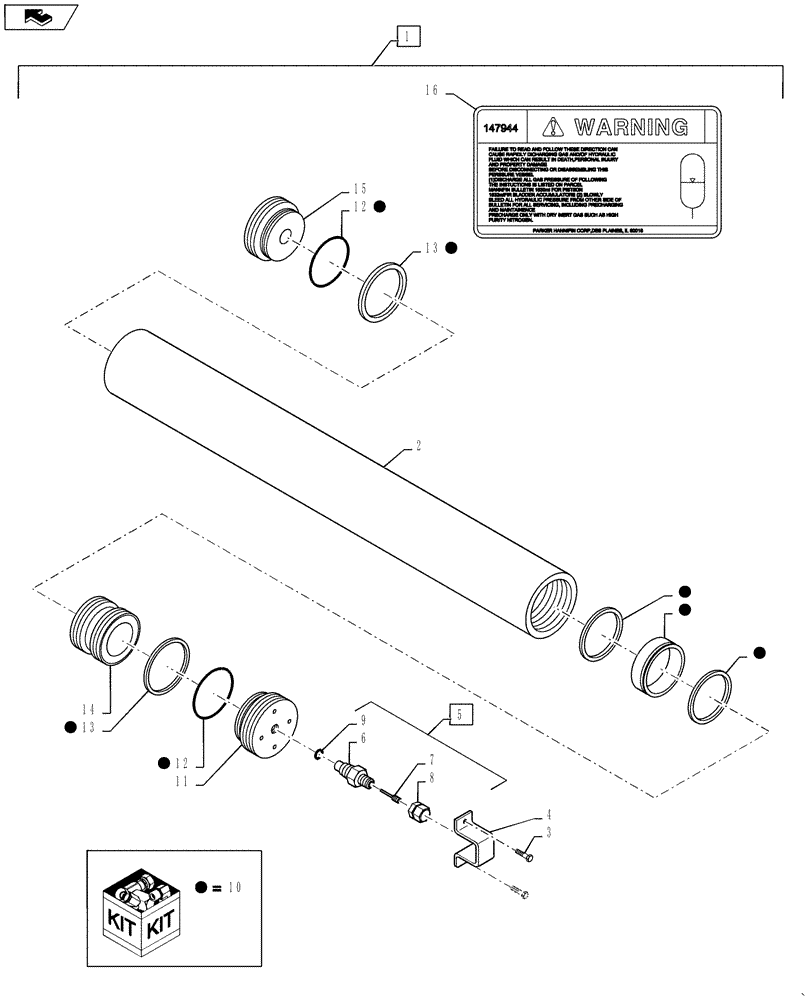

Схема запчастей Case IH 586H - (35.350.01) - ACCUMULATOR ASSEMBLY (35) - HYDRAULIC SYSTEMS
13
10
7
home
15
12
2
14
11
10
10
1
9
10
10
6
12
10
16
5
10
10
8
10
4
3
13

Артикул

Название

Примечание

Количество

1

356131A1

ACCUMULATOR

Load Control, Incl 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

Tube Incl With 1

1шт.

3

192895A1

PROTECTOR

Shield

1шт.

4

276-2456

SELF-TAP SCREW,Hex Hd, #10 x 3/8"

2шт.

5

1978142C1

VALVE

Incl 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

Valve, Pressure

1шт.

7

1978143C1

PISTON

Accumulator

1шт.

8

1978144C1

CAP

Accumulator

1шт.

9

1978158C1

O-RING

Seal

1шт.

10

1978141C1

SEAL KIT

Component Parts Not Serviced Separately

1шт.

11

NSS

NOT SOLD SEPARAT

Gland, Cylinder Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

O-Ring Incl in 1

2шт.

13

NSS

NOT SOLD SEPARAT

Ring, Backup Incl in 1

2шт.

14

NSS

NOT SOLD SEPARAT

Piston Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Cap Incl in 1

1шт.

16

L129440

DECAL

Accumulator Application Instructions

1шт.

Выбрано товаров: 16
