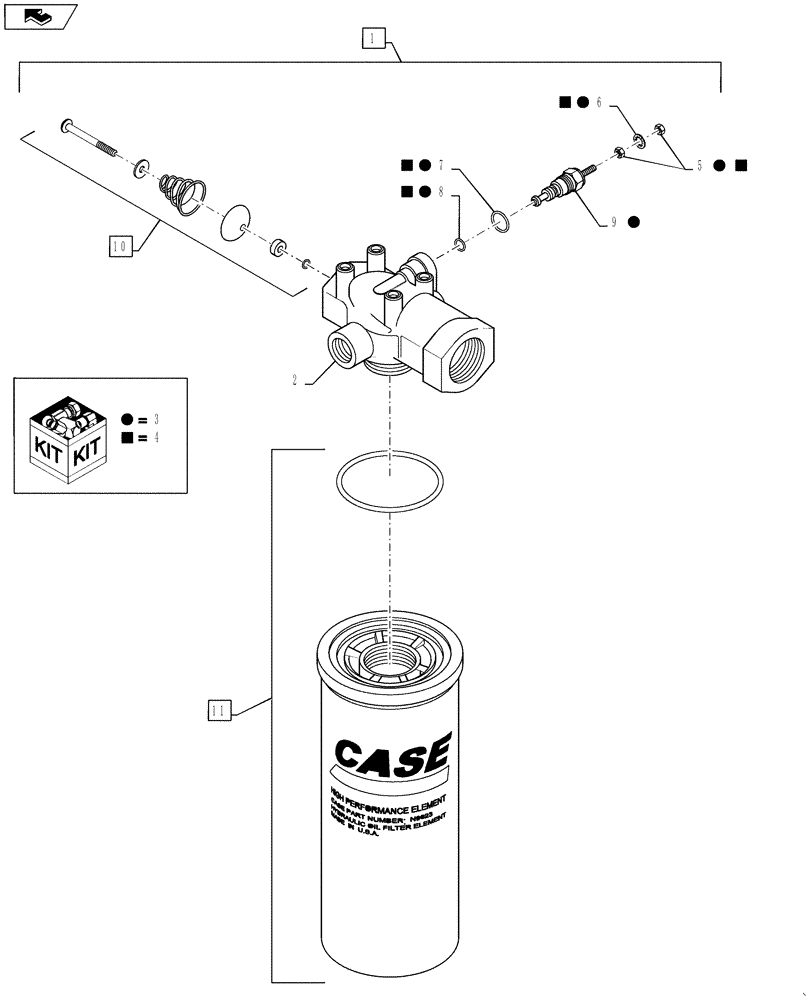

Запчасти Case IH 586H (35.300.03) - FILTER ASSEMBLY OIL (35) - HYDRAULIC SYSTEMS

1

122536A1

HYDRAULIC OIL FILTER

Hydraulic Oil, Incl 2 - 9, Years: -01-NOV-14

1шт.

2

NSS

NOT SOLD SEPARAT

Head, Filter Incl in 1

1шт.

3

N6755

PRESSURE SWITCH

Kit Restriction, Electric, Incl 5 - 9

1шт.

4

N6941

KIT

Restriction Indicator Repair, Incl 5 - 8

1шт.

5

129-667

NUT,#10-32, LH

2шт.

6

493-21020

LOCK WASHER,Int Tooth, #10

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

Inner

1шт.

9

NSS

NOT SOLD SEPARAT

Indicator, Restriction, Electric Incl in 3

1шт.

10

NSS

NOT SOLD SEPARAT

Valve, By-Pass Incl in 1

1шт.

11

N9025

HYDRAULIC OIL FILTER

Incl O-Ring Seal (Filter with Threads in Center)

1шт.
