Запчасти Case IH 586H (35.204.01[01]) - VAR - 423086 - HYD. LINE, VALVE, POWER POSITIONER (35) - HYDRAULIC SYSTEMS

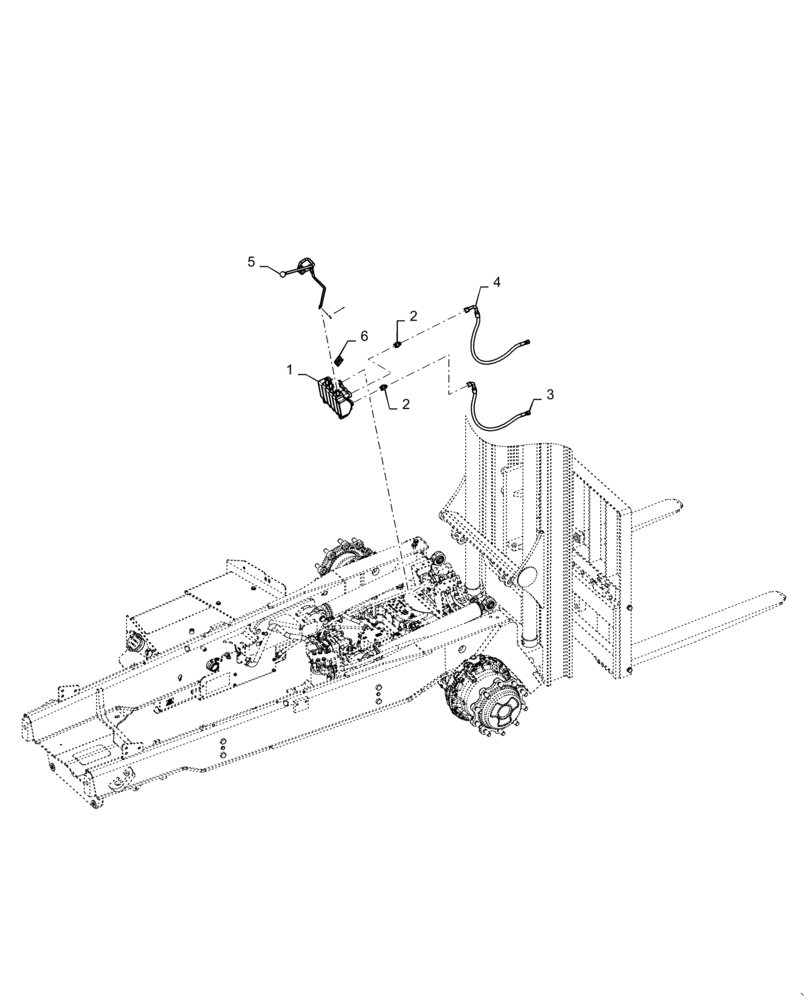

Схема запчастей Case IH 586H - (35.204.01[01]) - VAR - 423086 - HYD. LINE, VALVE, POWER POSITIONER (35) - HYDRAULIC SYSTEMS
6
2
2
1
5
3
4

Артикул

Название

Примечание

Количество

1

84286432

ASSEMBLY, POWER POSITIONER

VALVE

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

2шт.

3

87432826S

VALVE TO POSITION

HYDRAULIC HOSE,10mm ID x 686mm L, SAE 100R17

1шт.

4

87432827S

VALVE TO POSITION

HYDRAULIC HOSE,10mm ID x 762mm L, SAE 100R17

1шт.

5

338867A1

ROD

AUX/PWR POSITIONER

1шт.

6

87432940S

DECAL

FORK POSITIONER

1шт.

Выбрано товаров: 6
