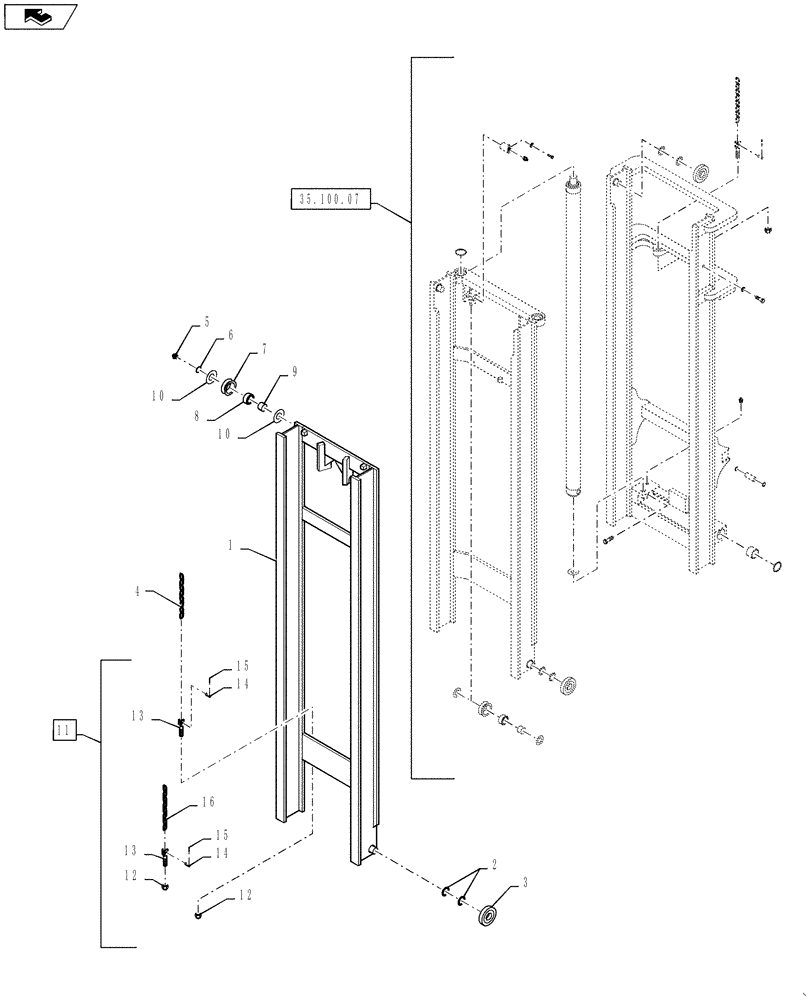

Запчасти Case IH 586H (35.100.07[03]) - MAST, 8000 LB 22 FEET (35) - HYDRAULIC SYSTEMS

1

337782A1

RAIL

Inner

1шт.

2

337606A1

SHIM

Fork Lift

1шт.

3

337607A1

ROLLER

Load

8шт.

4

363158A1

CHAIN (AG)

Mast Rail

1шт.

5

219-14

LUBE NIPPLE,1/4" NPTF

4шт.

6

100-11175

SNAP RING,#175, Ext

4шт.

7

339814A1

SHEAVE

Chain

2шт.

8

339816A1

BALL BEARING

Mast

2шт.

9

339817A1

RACE

Inner

2шт.

10

339818A1

THRUST WASHER,44.45mm ID x 88.9mm OD x 4.76mm Thk

Thrust

4шт.

11

339822A1

CHAIN (CE)

Assy Incl 12 - 16

2шт.

12

231-24412

LOCK NUT,3/4"-16, GB

4шт.

13

339819A1

ANCHOR

Chain

4шт.

14

339820A1

PIN

Chain Connect

4шт.

15

432-612

COTTER PIN,3/32" x 3/4"

8шт.

16

339821A1

CHAIN (AG)

Mast

2шт.
