Запчасти Case IH 586H (35.100.06) - MAST, 8000 LB 15 FEET HOOK AND SHAFT FRAME (35) - HYDRAULIC SYSTEMS

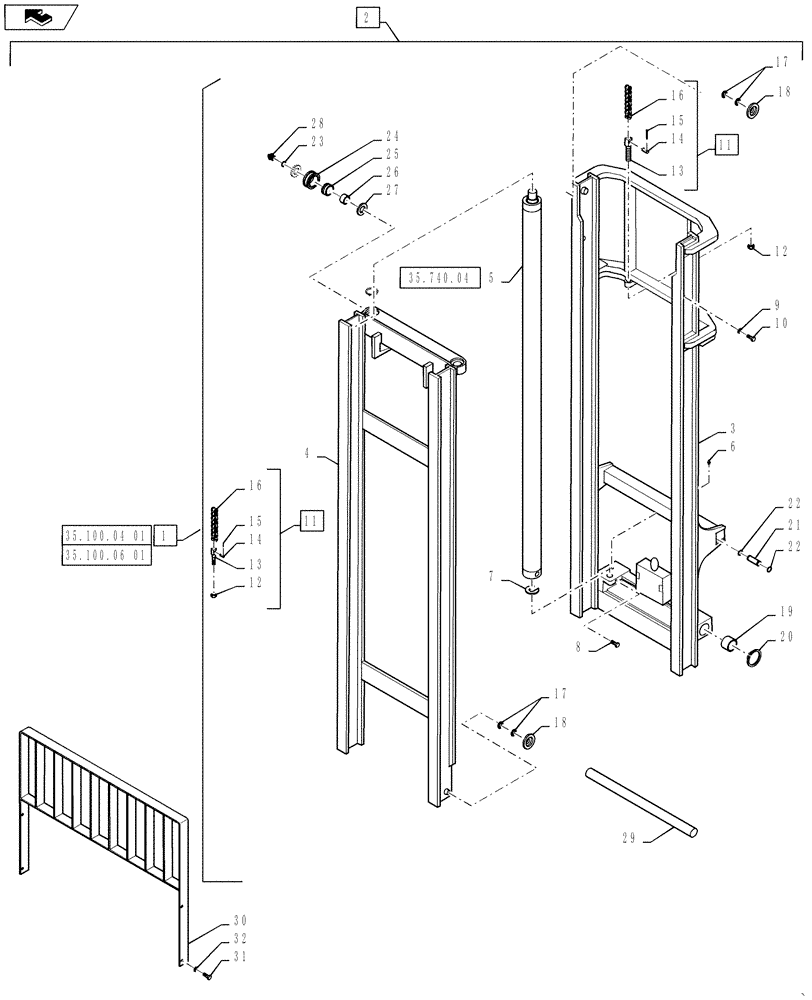

Схема запчастей Case IH 586H - (35.100.06) - MAST, 8000 LB 15 FEET HOOK AND SHAFT FRAME (35) - HYDRAULIC SYSTEMS
32
3
30
14
35.100.06 01
35.740.04
14
27
6
8
17
15
13
1
17
10
13
22
19
home
28
2
16
9
31
4
11
25
18
12
11
35.100.04 01
21
23
18
22
15
20
29
5
24
12
16
26
7

Артикул

Название

Примечание

Количество

329464A3

MAST ASSEMBLY

KIT, MAST ASSY 8K 15' 60" HOOK MAST, Incl 329464A3

1шт.

1

329464A3

MAST ASSEMBLY

4.5 M (15 ft), Hook, Incl 2 - 29 Also Incl Parts On Figures 35.100.04(01), 35.100.06(01)

1шт.

1

329466A3

MAST ASSEMBLY

4.5 M (15 ft), Shaft, Incl 2 - 29 Also Incl Parts On Figures 35.100.04(01), 35.100.06(01)

1шт.

1

324496A3

MAST ASSEMBLY

4.5 M (15 ft), Shaft, Incl 2 - 29 Also Incl Parts On Figures 35.100.04(01), 35.100.06(02)

1шт.

2

341189A1

RAIL ASSY.

Incl 3 - 32, Also Incl parts On Figure 35.100.04(01)

1шт.

3

341192A1

RAIL

Outer

1шт.

4

341193A1

RAIL

Inner

1шт.

5

341194A1

CYLINDER ASSY.

Rail, See Figure 35.740.04

2шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

7

339786A1

SHIM

0.76 mm (0.03 in)

1шт.

8

339777A1

BOLT

Cylinder Retaining

2шт.

9

492-11075

LOCK WASHER,3/4"

2шт.

10

339778A1

BOLT

Rail Stop

2шт.

11

341190A1

CHAIN (CE)

Incl 12 - 16

2шт.

12

231-24412

LOCK NUT,3/4"-16, GB

4шт.

13

339819A1

ANCHOR

Chain

4шт.

14

339820A1

PIN

Chain Connect

4шт.

15

432-612

COTTER PIN,3/32" x 3/4"

8шт.

16

341191A1

CHAIN (AG)

Mounts Through Carriage Chain Anchor

2шт.

17

337606A1

SHIM

0.76 mm (0.03 in)

1шт.

18

337607A1

ROLLER

Load

4шт.

19

339787A1

BUSHING

Mast

2шт.

20

103-21300

SNAP RING,3.00", Int, #300

2шт.

21

339789A1

PIN

Mast Tilt

2шт.

22

103-11125

SNAP RING,#125, Ext

4шт.

23

100-11175

SNAP RING,#175, Ext

4шт.

24

339814A1

SHEAVE

Chain

2шт.

25

339816A1

BALL BEARING

Mast

2шт.

26

339817A1

RACE

Inner Mast

2шт.

27

339818A1

THRUST WASHER,44.45mm ID x 88.9mm OD x 4.76mm Thk

Thrust

4шт.

28

219-14

LUBE NIPPLE,1/4" NPTF

2шт.

29

329457A1

SHAFT

Pivot,Mast

1шт.

30

329795A1

BACKREST,1524mm (60 inch)

1524 mm (60 in), Load Used With Mast Assembly 329464A3, 329466A3

1шт.

30

329798A1

BACKREST,2133.6mm (84 inch)

Used With Mast Assembly 324496A3

1шт.

30

47766279

BACKREST,2438.4mm (96 inch)

1шт.

31

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

4шт.

32

492-11062

BEARING WASHER,5/8"

4шт.

Выбрано товаров: 37
