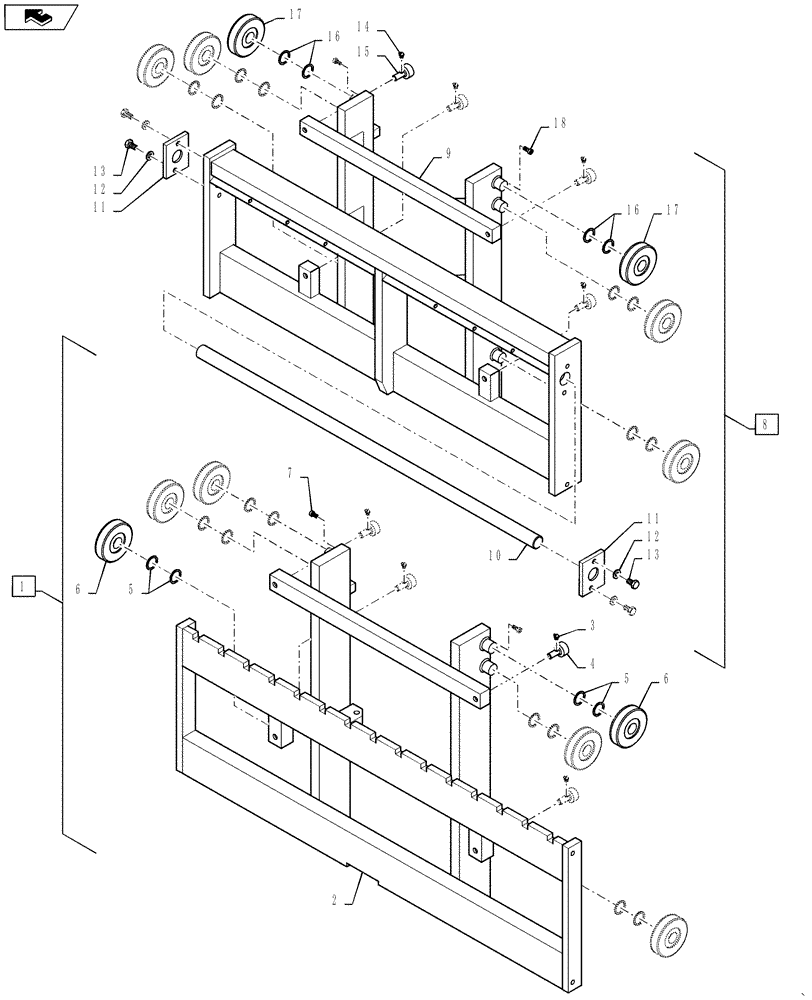

Запчасти Case IH 586H (35.100.06[01]) - MAST, HOOK AND SHAFT FRAME, 8000 LB (35) - HYDRAULIC SYSTEMS

1

339891A1

CARRIER

Hook, Incl 2 - 7

1шт.

2

339888A1

CARRIER

1524 mm (60 in), Hook

1шт.

3

219-17

LUBE NIPPLE,3/16" NPTF

4шт.

4

337605A1

ROLLER,44.45mm OD

Thrust

4шт.

5

337606A1

SHIM

0.76 mm (0.03 in)

1шт.

6

337607A1

ROLLER

Load

4шт.

7

61-4256

HEX SOC SCREW,Flat Hd, 1/4"-20 x 3/8"

2шт.

8

339884A1

CARRIER

Shaft, Incl 9 - 18

1шт.

9

339881A1

CARRIER

1524 mm (60 in), Shaft

1шт.

10

339882A1

SHAFT

8000 LB

1шт.

11

337651A1

CAP

Shaft

2шт.

12

492-11062

BEARING WASHER,5/8"

4шт.

13

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

4шт.

14

219-17

LUBE NIPPLE,3/16" NPTF

4шт.

15

337605A1

ROLLER,44.45mm OD

Thrust

4шт.

16

337606A1

SHIM

0.76 mm (0.03 in)

1шт.

17

337607A1

ROLLER

Load

4шт.

18

61-4256

HEX SOC SCREW,Flat Hd, 1/4"-20 x 3/8"

2шт.
