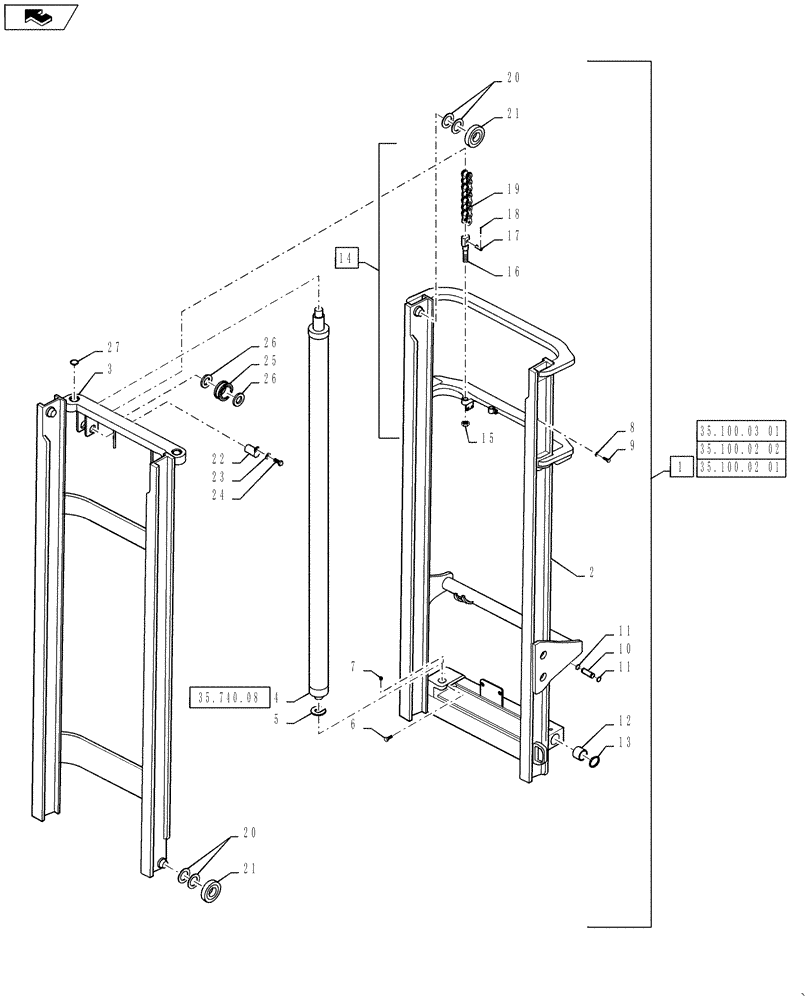

Запчасти Case IH 586H (35.100.03) - MAST, 6000 LB, 4.8 M (16 FT) FREE LIFT (35) - HYDRAULIC SYSTEMS

1

348366A3

MAST ASSEMBLY

4.8 M (16 ft), Hook, Incl 2 - 29, Also Incl Parts On Figures 35.100.02(01), 35.100.02(02), 35.100.03(01)

1шт.

1

349444A2

KIT

KIT, MAST FREELIFT 16' 60" SHAFT 6K, INCL 348367A3

1шт.

1

348367A3

MAST ASSEMBLY

4.8 M (16 ft), Shaft, Incl 2 - 29, Also Incl Parts On Figures 35.100.02(01), 35.100.02(02), 35.100.03(01)

1шт.

1

360794A1

RAIL ASSY.

Incl 2 - 29, Also Incl Parts On Figures 35.100.02(01), 35.100.03(01)

1шт.

2

360795A1

RAIL

Outer

1шт.

3

360796A1

RAIL

Intermediate

1шт.

4

360792A1

CYLINDER ASSY.

Rail, See Figure 35.740.08

2шт.

5

339786A1

SHIM

0.76 mm (0.03 in)

1шт.

6

339777A1

BOLT

Cylinder Retaining

2шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

8

492-11075

LOCK WASHER,3/4"

2шт.

9

339778A1

BOLT

Rail Stop

2шт.

10

339789A1

PIN

Tilt

2шт.

11

103-11125

SNAP RING,#125, Ext

4шт.

12

339787A1

BUSHING

Forklift Mast

2шт.

13

103-21300

SNAP RING,3.00", Int, #300

2шт.

14

360805A1

CHAIN (CE)

Kit Mast, Incl 15 - 19

2шт.

15

231-24412

LOCK NUT,3/4"-16, GB

8шт.

16

341172A1

ANCHOR

Chain

8шт.

17

341173A1

PIN

Chain

8шт.

18

432-612

COTTER PIN,3/32" x 3/4"

16шт.

19

360801A1

CHAIN (AG)

Mast

2шт.

20

339897A1

SHIM

0.76 mm (0.03 in)

1шт.

21

339898A1

ROLLER

Load

8шт.

22

352989A1

PIN

Mast

2шт.

23

492-11031

LOCK WASHER,5/16"

2шт.

24

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

25

341171A1

SHEAVE,36.6mm ID x 107.9mm OD

Chain

4шт.

26

352990A1

RETAINER

Washer

4шт.

27

100-11156

SNAP RING,#156, Ext

1524 mm (60 in), Load

2шт.
