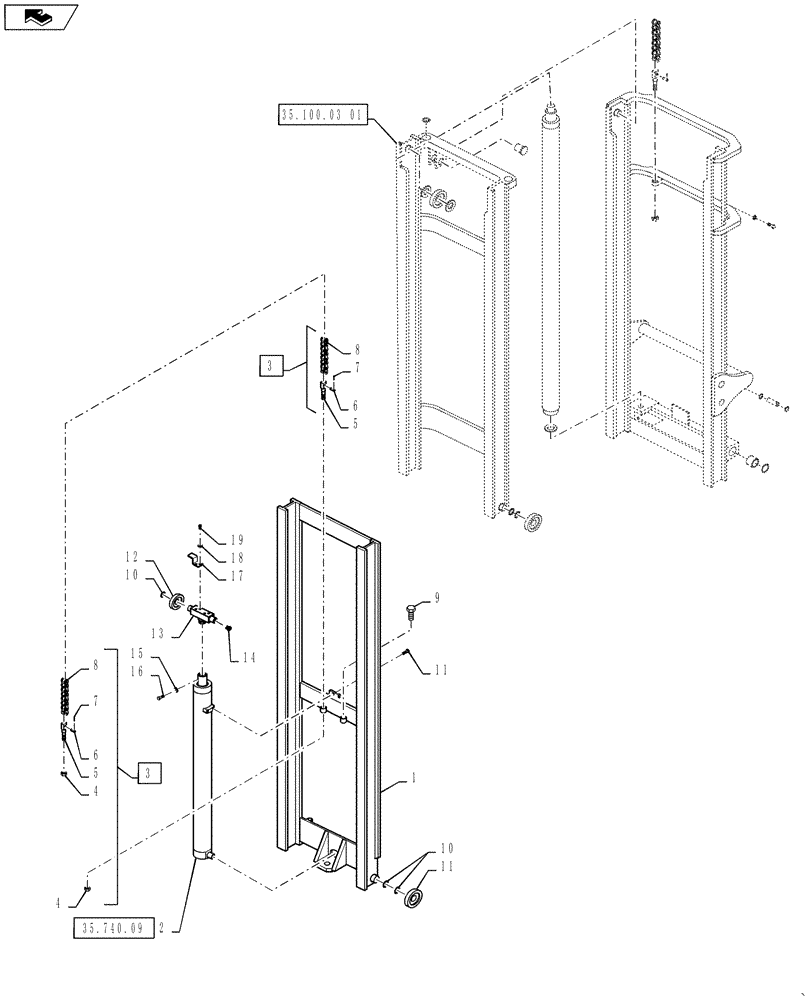

Запчасти Case IH 586H (35.100.03[01]) - 6000 LB 4.8 M (16 FT) FREE LIFT (35) - HYDRAULIC SYSTEMS

1

352985A1

RAIL

Inner

1шт.

2

348743A1

CYLINDER ASSY.

Free Lift See Fig 35.740.09

1шт.

3

352996A1

CHAIN (CE)

Incl 4 - 8

2шт.

4

231-24412

LOCK NUT,3/4"-16, GB

8шт.

5

341172A1

ANCHOR

Chain

8шт.

6

341173A1

PIN

Chain

8шт.

7

432-612

COTTER PIN,3/32" x 3/4"

16шт.

8

352994A1

CHAIN (AG)

Free Lift

2шт.

9

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

10

339897A1

SHIM

0.76 mm 0.03 in

1шт.

11

339898A1

ROLLER

Load

8шт.

12

341171A1

SHEAVE,36.6mm ID x 107.9mm OD

Chain

4шт.

13

352991A1

VALVE

Cross Head

1шт.

14

353378A1

PLUG

Socket

2шт.

15

492-11038

LOCK WASHER,3/8"

1шт.

16

414-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

2шт.

17

352992A1

GUARD

Chain

2шт.

18

492-11025

LOCK WASHER,1/4"

4шт.

19

461-32512

HEX SOC SCREW,1/4"-20 x 3/4"

4шт.
