Запчасти Case IH 586H (35.100.02[01]) - MAST ASSEMBLY 6000 LB FREE LIFT ONLY HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

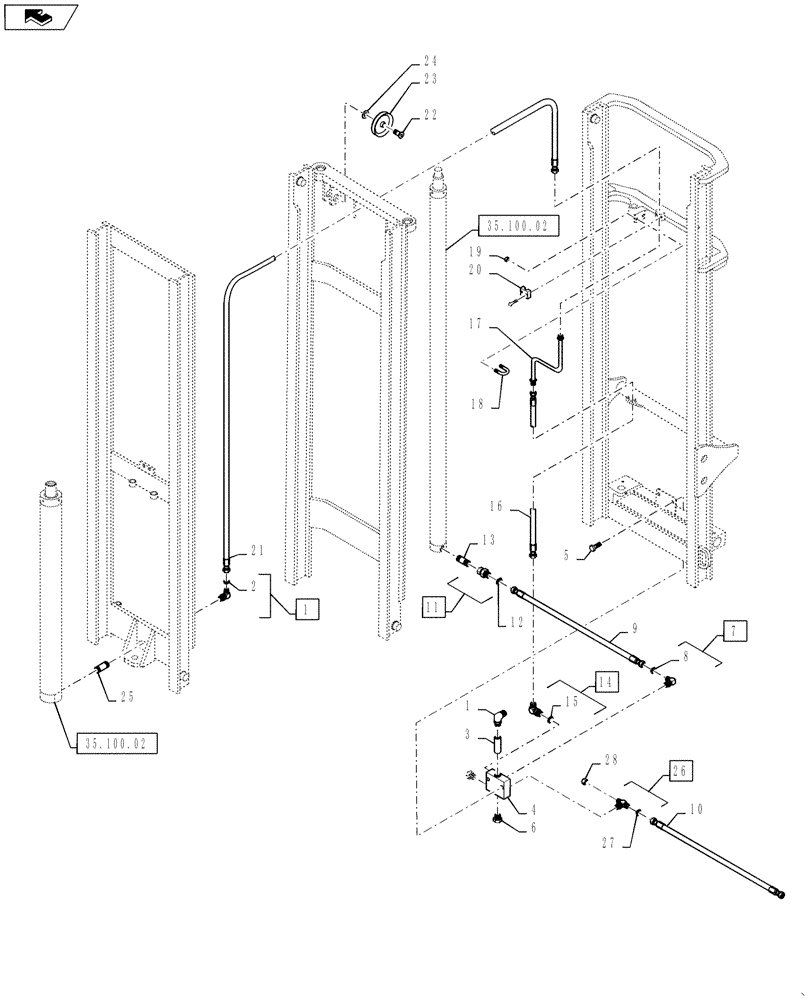

Схема запчастей Case IH 586H - (35.100.02[01]) - MAST ASSEMBLY 6000 LB FREE LIFT ONLY HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS
15
11
13
35.100.02
5
20
12
8
25
4
1
23
18
21
24
22
28
16
7
26
home
35.100.02
27
3
14
1
9
17
6
19
2
10

Артикул

Название

Примечание

Количество

1

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Incl 2

2шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Incl in 1

1шт.

3

353019A1

VALVE

Flow Mast

1шт.

4

360808A1

BLOCK

Manifold Mast

1шт.

5

61-33832

HEX SOC SCREW,3/8 - 16 x 2"

Mounting

2шт.

6

339834A1

PLUG

Manifold

3шт.

7

218-5101

90 ELBOW,90 Degree Elbow, 5/16" - 24 Male JIC x 5/16" - 24 Male ORB

Incl 8

2шт.

8

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

Incl in 7

1шт.

9

337777A1

HOSE

Right Hand

1шт.

10

337778A1

HOSE

Left Hand

1шт.

11

218-5356

HYD CONNECTOR,1 3/16"-12, 37 Degree x 1 1/16"-12, O-Ring

Incl 12

2шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl in 11

1шт.

13

352952A1

VALVE

Right Hand Side

1шт.

14

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl 15

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Incl in 14

1шт.

16

363201A1

HOSE

Mast

1шт.

17

353021A1

TUBE

Mast

1шт.

18

D86366

U-BOLT

1/4 Inch

1шт.

19

231-2444

NUT,1/4"-28, GB

2шт.

20

353022A1

TUBE

Tube Support

1шт.

21

363202A1

HOSE ASSY.

Mast Service

1шт.

22

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

1шт.

23

353024A1

SHEAVE

Hose

1шт.

24

353025A1

BOLT

Hose

1шт.

25

353026A1

LIMITER, TRAVEL

Orifice Flow

1шт.

26

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl 27

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl in 26

1шт.

28

218-755

CAP,37 Degree, 3/4"-16

1шт.

Выбрано товаров: 28
