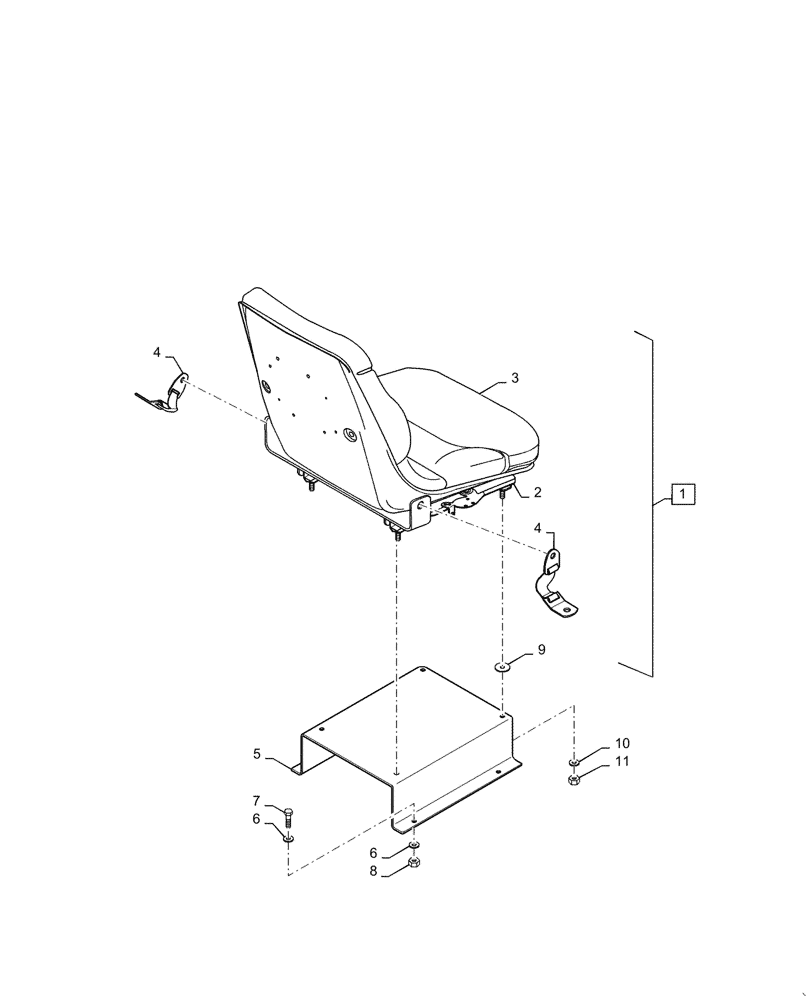

Запчасти Case IH 586H (90.120.BC[02]) - SEAT, NON-SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47946226

Standard, Non-suspension, Gray Vinyl, Incl 2 - 4

DRIVER SEAT

1шт.

2

87338699

SEAT ACCESSORY

Slide Kit; Includes (1) Slide With Handle, (1) Locking Slide, (1) Slide Latch Rod, (4) Lock Nuts, (6) Flat Washers, (4) Bolts, (4) Washers

1шт.

3

47962226

Seat Top, Gray Vinyl

SEAT BACK

1шт.

4

87338686

SEAT ACCESSORY

Tether Belt, Two-Piece

1шт.

5

352736A1

LARGE PLATE

Seat Mounting

1шт.

6

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

8шт.

7

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

9

496-81028

WASHER,10.31mm ID x 31.75mm OD x 4.06mm Thk

2шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.
