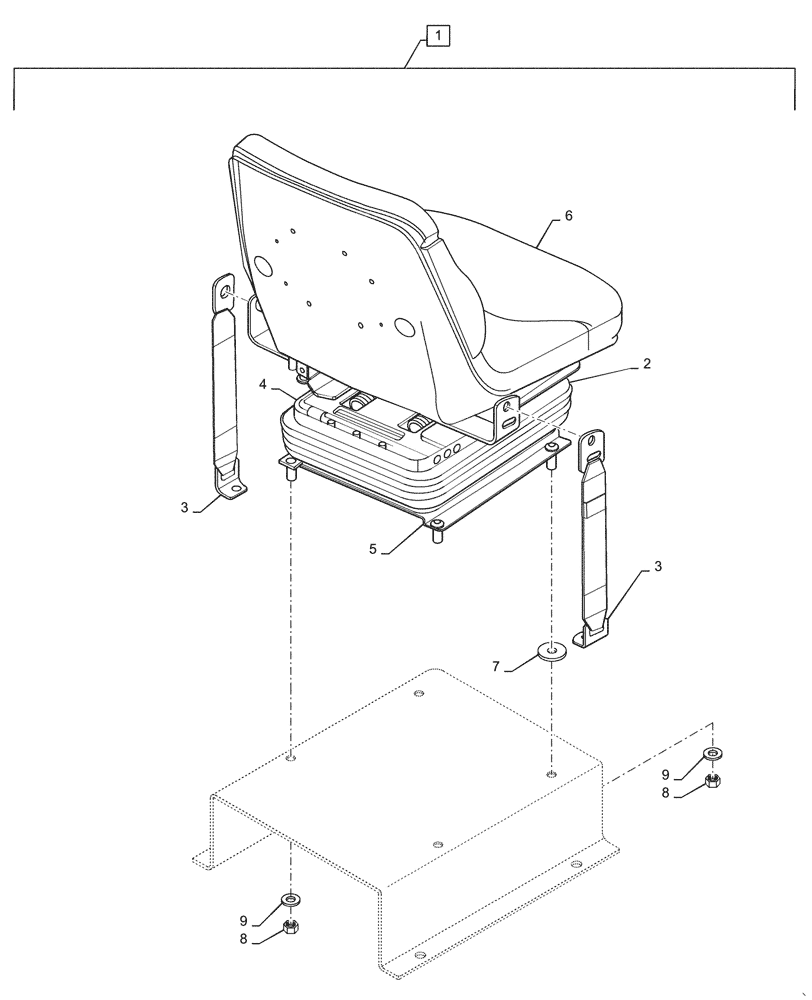

Запчасти Case IH 586H (90.120.BC[01]) - VAR - 423042 - DELUXE SUSPENSION SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47948904

Deluxe Seat Assembly, Gray Vinyl, Incl 2 - 6

DRIVER SEAT

1шт.

2

87338698

SEAT ACCESSORY

Suspension Assembly, Component Parts Not Serviced Separately

1шт.

3

87338687

SEAT ACCESSORY

Tether Belt, Two-Piece

1шт.

4

87338699

SEAT ACCESSORY

Slide Kit, Includes (1) Slide Handle, (1) Locking Slide, (1) Slide Latch Rod, (4) Lock Nuts, (6) Flat Washers, (4) 5/16 x 3/4 Bolts, (4) Washers

1шт.

5

87338700

SEAT ACCESSORY

Riser Kit, Includes (1) Adapter Plate Riser Weldment, (4) M8 x 12 Bolts

1шт.

6

47962226

Seat Top, Gray Vinyl

SEAT BACK

1шт.

7

496-81028

WASHER,10.31mm ID x 31.75mm OD x 4.06mm Thk

2шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

9

895-1108

WASHER

9mm x 16mm x 1.6mm

4шт.
