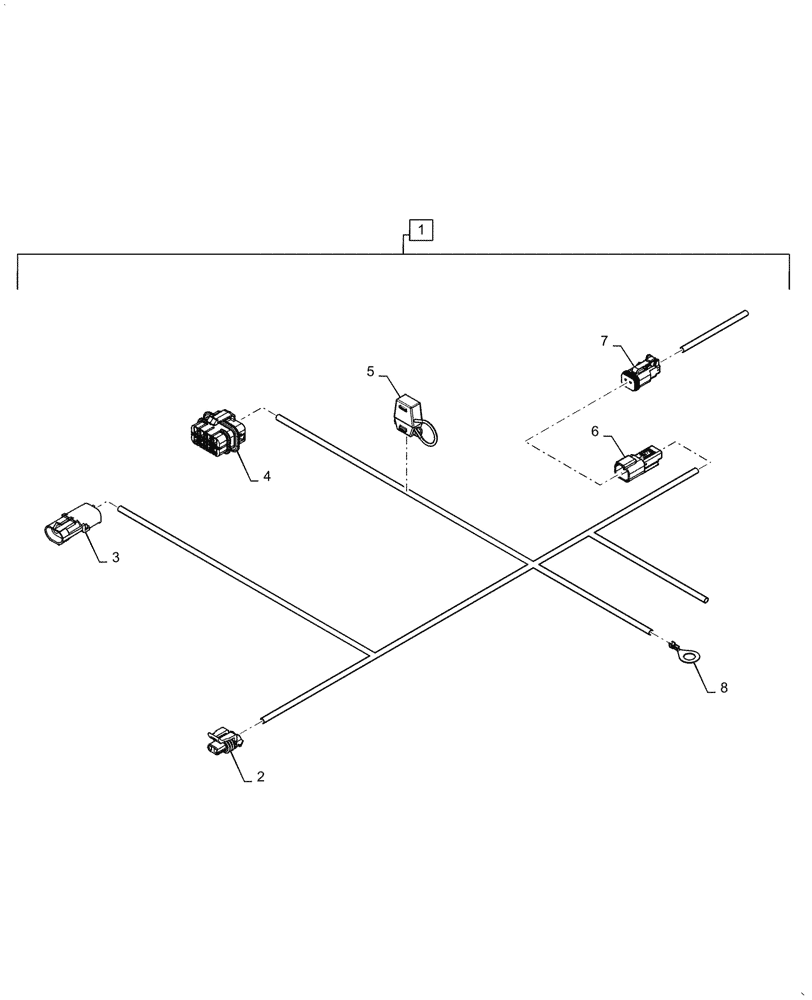

Запчасти Case IH 586H (55.100.DP[10]) - WIRE HARNESS, SEAT BELT, ALARM (55) - ELECTRICAL SYSTEMS

1

47949204

Seat Belt Alarm

WIRE HARNESS

1шт.

2

87691549

ELEC CONNECTOR

Seat Belt Switch, X-004

1шт.

2

87705073

STOP LOCK

X-004

1шт.

3

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Buzzer, X-003

1шт.

4

84128249

Relay, X-001

ELEC CONNECTOR

1шт.

4

84128280

WIRE CONNECTOR

X-001

1шт.

4

84571082

X-001

ELEC CONNECTOR

1шт.

4

84571084

X-001

BRACKET

1шт.

4

87696396

RELAY,12V, 35A, Micro

X-001

1шт.

4

87745379

PLUG

X-001

4шт.

5

87712428

X-002

FUSE HOLDER

1шт.

5

87693742

FUSE,5A

X-002

1шт.

6

87695567

ELEC CONNECTOR,Fem, 2 Cavities/Pins

Key Switched Power, X-005B

1шт.

6

86500166

ELEC CONNECTOR

X-005B

1шт.

6

84068583

PLUG,12 - 16 Ga, White

X-005B

1шт.

7

87695909

ELEC CONNECTOR,Female, 2 Pole

Key Switched Power, X-005A

1шт.

7

84074638

LOCKING TAB,Locking Wedge, Green

X-005A

1шт.

7

84068583

PLUG,12 - 16 Ga, White

X-005A

1шт.

8

84426120

TERMINAL

Ground, X-006

1шт.
