(35.740.AH[02]) - 6000 LB FREELIFT MAST HYDRAULIC SYSTEM

Запчасти Case IH 586H (35.740.AH[02]) - 6000 LB FREELIFT MAST HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

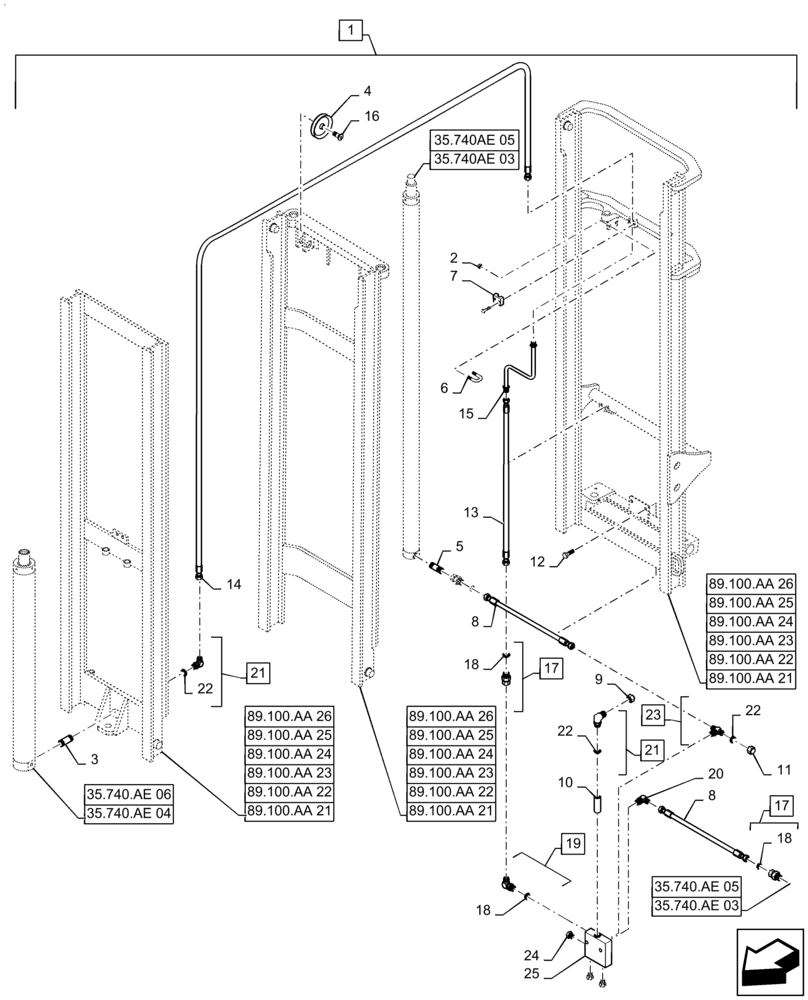

Схема запчастей Case IH 586H - (35.740.AH[02]) - 6000 LB FREELIFT MAST HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS
89.100.aa 21
22
25
89.100.aa 23
89.100.aa 25
19
89.100.aa 23
89.100.aa 25
35.740.ae 04
89.100.aa 23
1
6
13
3
11
9
7
89.100.aa 26
17
89.100.aa 21
22
18
89.100.aa 24
20
22
2
35.740.ae 03
89.100.aa 22
18
24
89.100.aa 24
35.740.ae 06
15
89.100.aa 26
89.100.aa 26
14
89.100.aa 24
35.740ae 05
16
18
89.100.aa 22
35.740.ae 05
35.740ae 03
89.100.aa 25
5
10
12
21
4
23
8
89.100.aa 22
21
89.100.aa 21
8
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47772426

Rail, Complete, Incl 2 - 23

SUPPORT

1шт.

2

231-2444

NUT,1/4"-28, GB

2шт.

3

353026A1

LIMITER, TRAVEL

Flow

1шт.

4

353024A1

SHEAVE

Hose

1шт.

5

352952A1

VALVE

Flow Limiter

1шт.

6

D86366

U-BOLT

1шт.

7

353022A1

TUBE

Freelift Mast

1шт.

8

337777A1

HOSE

RH Mast

1шт.

9

218-756

CAP,37 Degree, 7/8"-14

1шт.

10

353019A1

VALVE

Flow

1шт.

11

218-755

CAP,37 Degree, 3/4"-16

1шт.

12

61-33832

HEX SOC SCREW,3/8 - 16 x 2"

2шт.

13

360809A1

HOSE ASSY.

Freelift Mast

1шт.

14

360810A1

HOSE ASSY.

Freelift Mast

1шт.

15

353021A1

TUBE

Freelift Mast

1шт.

16

353025A1

BOLT

Hose Sheave

1шт.

17

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl 18

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Used on Ref 17, 19

1шт.

19

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl 18

1шт.

20

218-5101

90 ELBOW,90 Degree Elbow, 5/16" - 24 Male JIC x 5/16" - 24 Male ORB

1шт.

21

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Incl 22

2шт.

22

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Used on Ref 21

1шт.

23

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl 22

1шт.

24

339834A1

PLUG

Manifold

3шт.

25

360808A1

BLOCK

Manifold

1шт.
