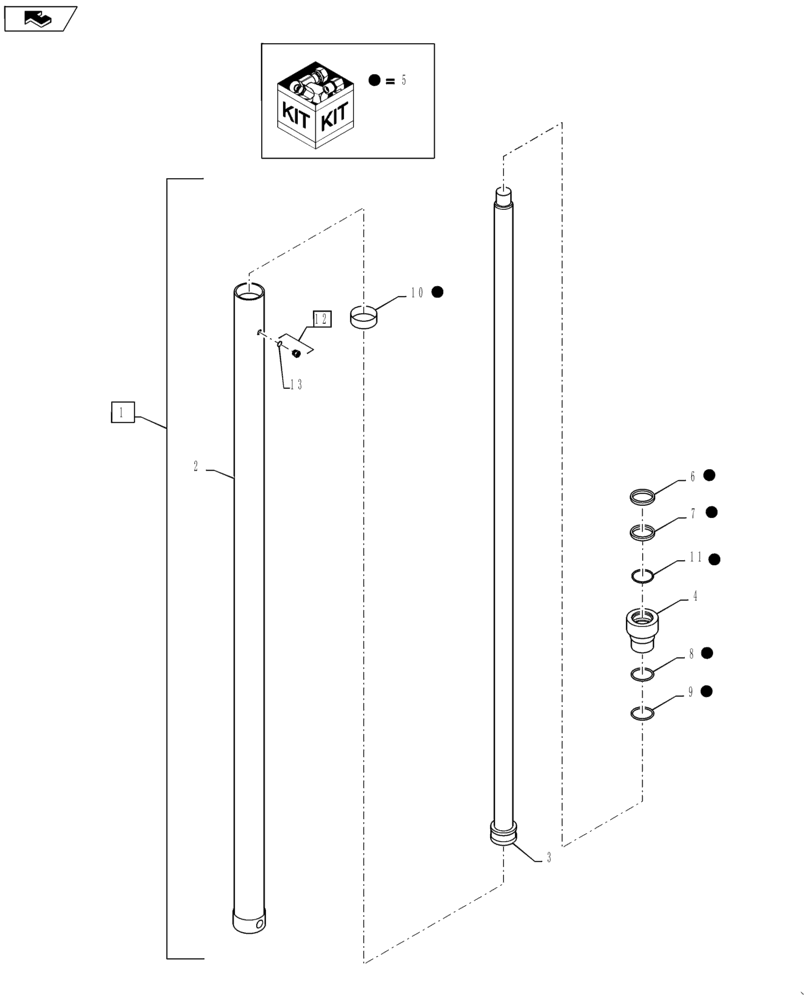

Запчасти Case IH 586H (35.740.AE[03]) - 6000 LB, 16 FT, FREELIFT CYLINDER ASSY (35) - HYDRAULIC SYSTEMS

1

47735041

Rail, Mast Lift, Incl 2 - 13

HYDRAULIC CYLINDER

2шт.

2

360791A1

ROD ASSY.

1шт.

3

360791A1

ROD ASSY.

Piston

1шт.

4

337737A1

NUT

Gland

1шт.

5

337742A1

KIT

Seal, Incl 6 - 11

1шт.

6

337744A1

WIPER

1шт.

7

337746A1

CUP

1шт.

8

337748A1

BACK-UP RING

1шт.

9

337747A1

O-RING

1шт.

10

337749A1

RING

1шт.

11

360611A1

SEAL

1шт.

12

218-5207

PLUG,Hex Soc, 7/16"-20 ORB

Incl 13

1шт.

13

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Incl in 12

1шт.
