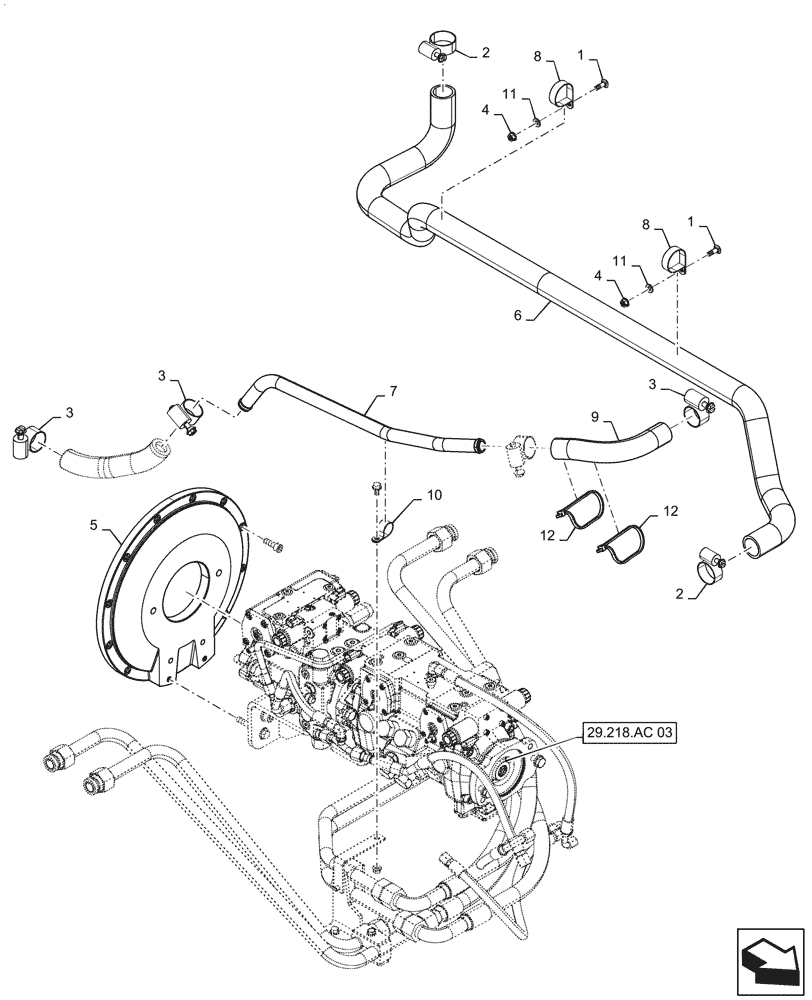

Запчасти Case IH TV380 (29.204.AB[06]) - EH PUMP EHF, SUPPLY LINES (20-NOV-2015 & NEWER) (29) - HYDROSTATIC DRIVE

1

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

2шт.

2

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

2шт.

3

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

4шт.

4

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

5шт.

5

47659211

Flywheel

COVER

1шт.

6

47672849

Gear Punp Suction

HYDRAULIC HOSE,38.1mm ID

1шт.

7

47895198

Charge Supplly

HYD TUBE

1шт.

8

84265306

CLAMP,47.6mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

9

84374131

Charge Supply

HYDRAULIC HOSE,25.4mm ID x 275mm L, SAE 100R1

2шт.

10

87307884

CLAMP,27mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

11

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

12

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.
