Запчасти Case IH TV380 (29.204.AB[05]) - HYDROSTATIC PUMP, DRIVE LINES, EHF CONTROLS (20-NOV-2015 & NEWER) (29) - HYDROSTATIC DRIVE

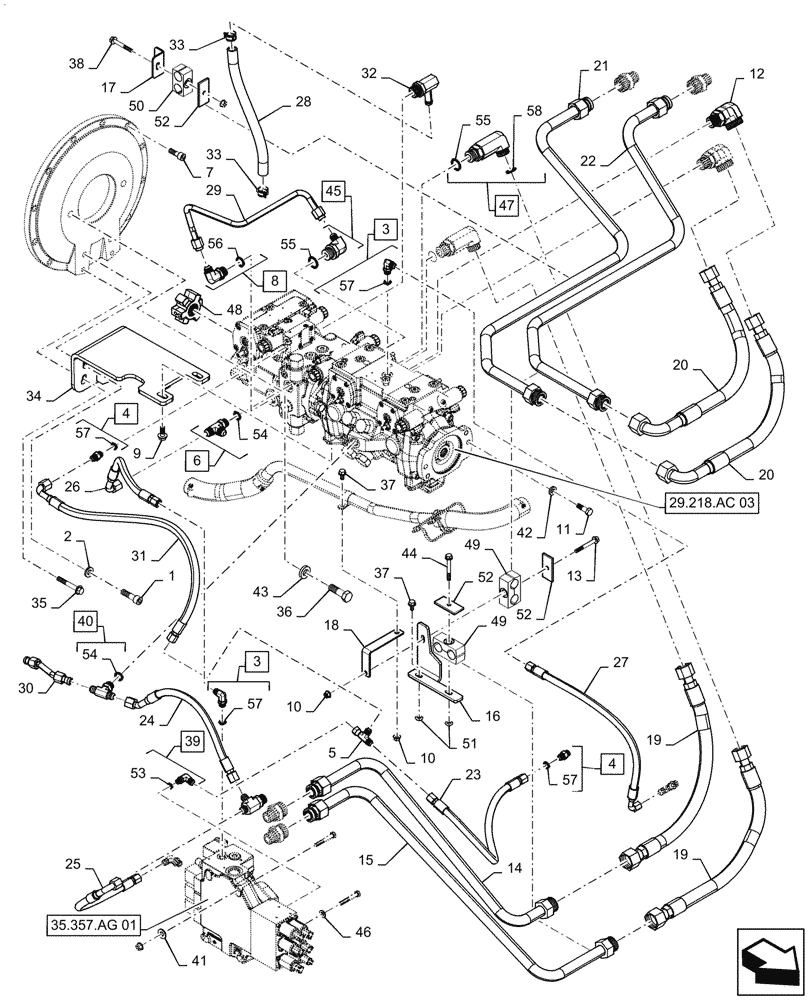

Схема запчастей Case IH TV380 - (29.204.AB[05]) - HYDROSTATIC PUMP, DRIVE LINES, EHF CONTROLS (20-NOV-2015 & NEWER) (29) - HYDROSTATIC DRIVE
29.218.ac 03
39
35
45
19
34
9
57
44
5
14
38
26
20
28
3
10
21
52
19
48
57
27
52
53
18
31
32
15
8
43
6
4
25
50
37
54
11
51
10
12
30
20
41
4
55
46
13
57
54
3
47
7
58
49
56
42
36
52
40
2
49
23
33
33
16
22
37
1
55
29
57
17
24
35.357.ag 01

Артикул

Название

Примечание

Количество

1

15734

SCREW,Hex Socket, 1/2" - 13 x 1-3/4"

2шт.

2

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

3

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 57

3шт.

4

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 57

3шт.

5

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

6

265808

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 ORB

Incl 54

1шт.

7

300442

HEX SOC SCREW,M10 x 30mm, Cl 8.8

10шт.

8

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

Incl 56

1шт.

9

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

10

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

11

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

2шт.

12

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

3шт.

13

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

14

47886077

RH CTL, Drive Motor

HYD TUBE

1шт.

15

47886097

RH CTL, Drive Motor

HYD TUBE

1шт.

16

47892805

Clamp Mounting

BRACKET

1шт.

17

47895194

Clamp Mounting

BRACKET

1шт.

18

47899210

Clamp Mounting

BRACKET

1шт.

19

47926578

Loop

HOSE,19mm ID x 565mm L, SAE100R19

2шт.

20

47926590

Loop

HOSE,19mm ID x 575mm L, SAE 100R19

2шт.

21

47966488

LH CTL, Drive Motor

TUBE

1шт.

22

47966491

LH CTL, Drive Motor

TUBE

1шт.

23

84288343

FLEXIBLE HOSE,9.53mm ID x 750mm L, SAE 100R17

EH Control to Brake

1шт.

24

84356607

Charge Suppply

HYDRAULIC HOSE,9.53mm ID x 364mm L, SAE 100R17

1шт.

25

84356613

Charge Supply Brake

HYDRAULIC HOSE,9.53mm ID x 552mm L, SAE 100R17

1шт.

26

84356615

Charge Supply LDR Valve

HYDRAULIC HOSE,9.53mm ID x 402mm L, SAE 100R17

1шт.

27

84356618

NOR Pump to Brake

HYDRAULIC HOSE,9.53mm ID x 592mm L, SAE 100R17

1шт.

28

84356619

EHF Drain

HYDRAULIC HOSE,15.88mm ID x 335mm L

1шт.

29

84387079

EHF Pump Drain

HYD TUBE,12.7mm OD

1шт.

30

84419203

P1 to P2 Charge

HYD TUBE,12.7mm OD

1шт.

31

84419205

Pump to Interlock

HOSE ASSY.,9.53mm ID x 780.8mm L, SAE 100R1

1шт.

32

84473278

FITTING,7/8"-14 ORB x 15.88mm OD Bead x M10 x 1.0

1шт.

33

84549542

CLAMP,20.5mm - 24mm, Hose

2шт.

34

84549585

Pump Support

MOUNTING PLATE

1шт.

35

86011090

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

2шт.

36

86508732

BOLT,5/8"-11 x 2.391" Cl 8

2шт.

37

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

3шт.

38

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

1шт.

39

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl 53

1шт.

40

86513024

TEE,3/4" - 16 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

Incl 54

1шт.

41

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

42

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

43

86637955

WASHER,0.66" ID x 1.25" OD x 0.24" Thk

2шт.

44

87017615

BOLT,Hex, M8 x 65mm, Cl 8.8

2шт.

45

87329785

ELBOW,90 Degree, 1-1/16" - 12 ORB x 3/4" - 16 JIC

Incl 55

1шт.

46

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

47

87661865

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 55, 58

2шт.

48

87711337

COUPLING,19T, 1-1/8" ID

Drive Star

1шт.

49

1546028C1

CLAMP,25.4mm ID x 82mm L

2шт.

50

225529A1

CLAMP,Dual, 25.4mm ID

1шт.

51

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

3шт.

52

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

3шт.

53

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

54

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

55

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

56

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

57

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

58

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

Выбрано товаров: 58
