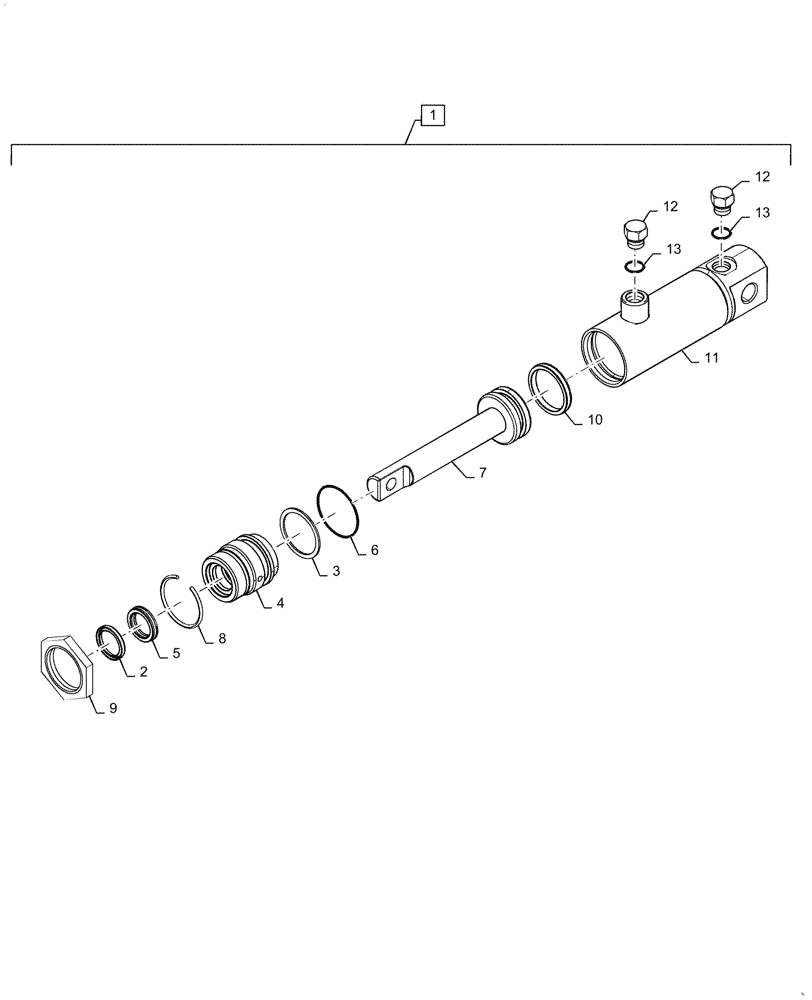

Запчасти Case IH TV380 (35.734.030) - HYDRAULIC COUPLER CYLINDER (35) - HYDRAULIC SYSTEMS

1

47647520

Coupler, Incl 2 - 13

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 48.1mm Stroke

1шт.

2

272471

WIPER SEAL,19.05mm ID x 25.5mm OD x 3.17mm Thk

Hydraulic Coupler Cylinder

1шт.

3

514099

WASHER,32.16mm ID x 38.16mm OD x 1.27mm Thk

Hydraulic Coupler Cylinder Head

1шт.

4

9826106

CYLINDER HEAD

Hydraulic Coupler

1шт.

5

9826108

SEAL,19.28mm ID x 25.2mm OD x 5.03mm Thk

Rod

1шт.

6

14463680

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

7

47766769

Piston

ROD,19.05mm OD x 140.2mm L

1шт.

8

86516844

SNAP RING,1-19/32" OD

Hydraulic Coupler Cylinder Head

1шт.

9

86516845

BEARING LOCK NUT,Hex, 1-3/8" - 18

1шт.

10

86605608

SEAL,31.34mm ID x 38.1mm OD x 4.75mm Thk

Piston

1шт.

11

NSS

NOT SOLD SEPARAT

Cylinder Tube, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Steel Plug, Incl in 1

2шт.

13

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.
