(35.724.010) - NO SELF-LEVELING-MECH

Запчасти Case IH TV380 (35.724.010) - NO SELF-LEVELING-MECH (35) - HYDRAULIC SYSTEMS

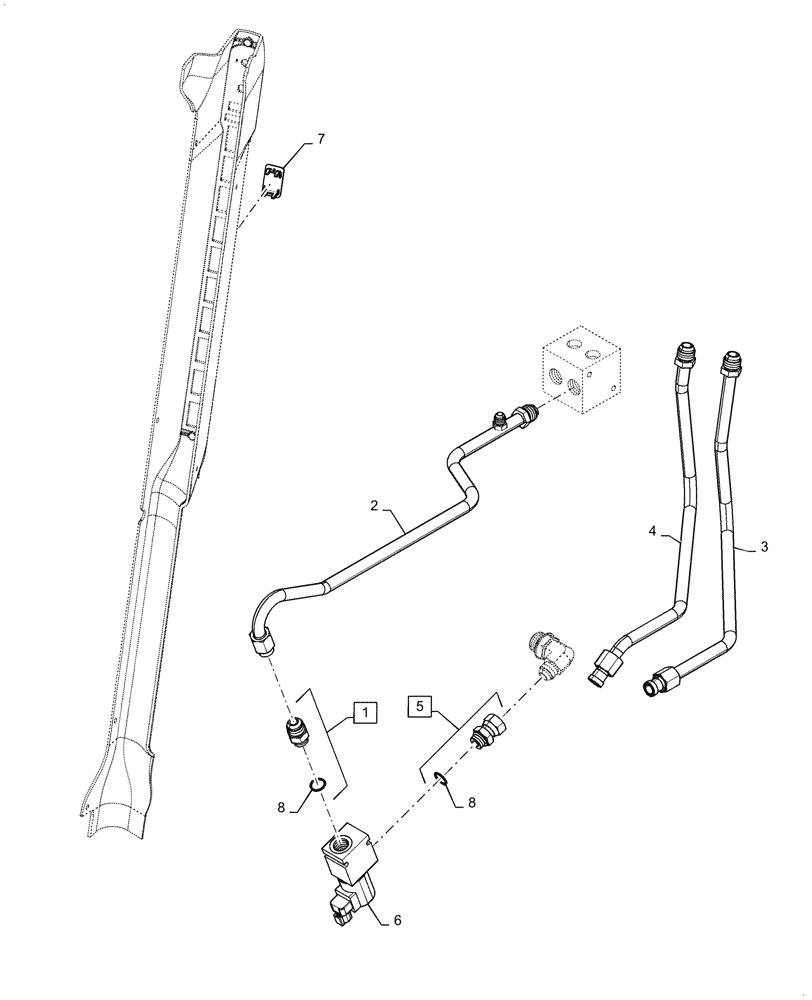

Схема запчастей Case IH TV380 - (35.724.010) - NO SELF-LEVELING-MECH (35) - HYDRAULIC SYSTEMS
5
8
8
1
6
7
2
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

Incl 8

1шт.

2

47383485

Lower, Loader Valve to Manifold

TUBE

1шт.

3

47844695

HYD TUBE

Bucket, Loader Valve to Right Arm

1шт.

4

47893491

HYD TUBE

Bucket, Loader Valve to Right Arm

1шт.

5

84586982

HYD CONNECTOR,7/8" - 14 Fem Sw x 3/4" - 16 ORB

Incl 8

1шт.

6

84593149

VALVE

Rod Lock

1шт.

7

126844A1

PLUG,1.427” x .62” , Plastic

Self Level, Switch Hole

1шт.

8

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.
