Запчасти Case IH TV380 (35.723.040) - LIFT CYLINDER LINES (35) - HYDRAULIC SYSTEMS

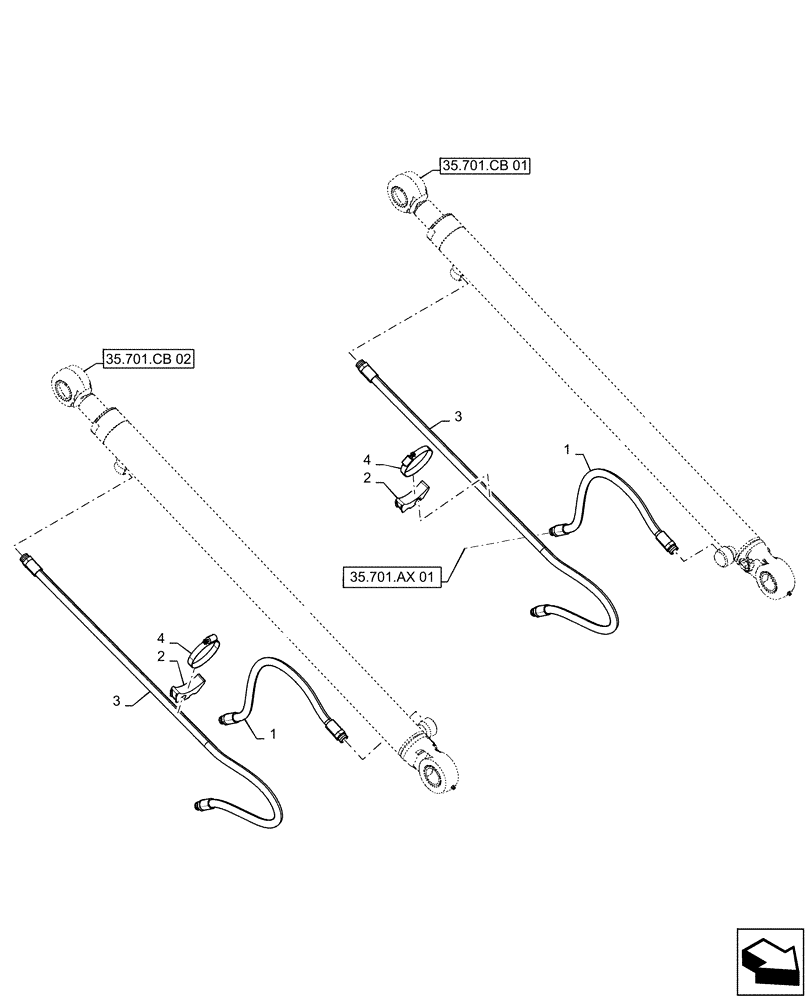

Схема запчастей Case IH TV380 - (35.723.040) - LIFT CYLINDER LINES (35) - HYDRAULIC SYSTEMS
35.701.cb 02
4
1
3
3
4
2
2
1
35.701.ax 01
35.701.cb 01

Артикул

Название

Примечание

Количество

1

47738631

HYDRAULIC HOSE,10mm ID x 572mm L, SAE 100R16

Lift Cylinder Base

2шт.

2

84255986

HOSE CLAMP

Cylinder Saddle

2шт.

3

84281674

HYDRAULIC HOSE,9.53mm ID x 1130mm L, SAE 100R17

Lift Cylinder Rod

2шт.

4

86625033

HOSE CLAMP,77.7mm - 101.6mm, Worm Gear

2шт.

Выбрано товаров: 4
