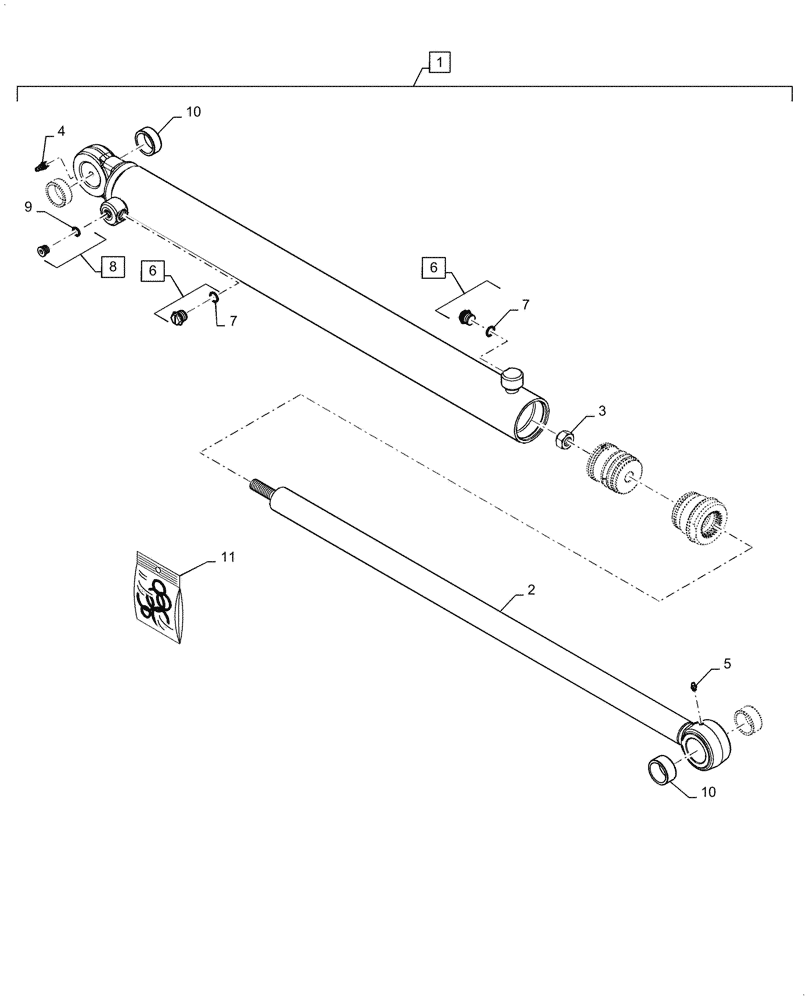

Запчасти Case IH TV380 (35.723.030) - BOOM HYDRAULIC CYLINDER, RH (35) - HYDRAULIC SYSTEMS

1

47416034

HYDRAULIC CYLINDER,Double Acting, 44.5mm Rod, 886.5mm Stroke

RH Lift, Incl 2 - 10

1шт.

1

47416034R

RH Lift

REMAN-HYD CYLINDER

1шт.

1

47416034C

Return Number

CORE-HYD CYLINDER

1шт.

2

47416066

ROD

44.5mm, Rod

1шт.

3

280724

LOCK NUT,3/4" - 16

1шт.

4

86977989

LUBE NIPPLE,90 Degree, 1/8" - 27 NPT, Leakproof

1шт.

5

87414

LUBE NIPPLE,1/4" - 28

1шт.

6

86625120

PLUG,Sltd Hd, 3/4"-16, Yellow, Plastic

Incl 7

2шт.

7

NSS

NOT SOLD SEPARAT

Oring, Included With 6

2шт.

8

9625178

PLUG,9/16" - 18 ORB

Incl 9

1шт.

9

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

84298801

BUSHING,38.35mm ID x 47.62 OD x 22.8mm L

4шт.

11

47416073

KIT

Cyl Seal

1шт.
