Запчасти Case IH TV380 (35.701.050[01]) - RIDE CONTROL (35) - HYDRAULIC SYSTEMS

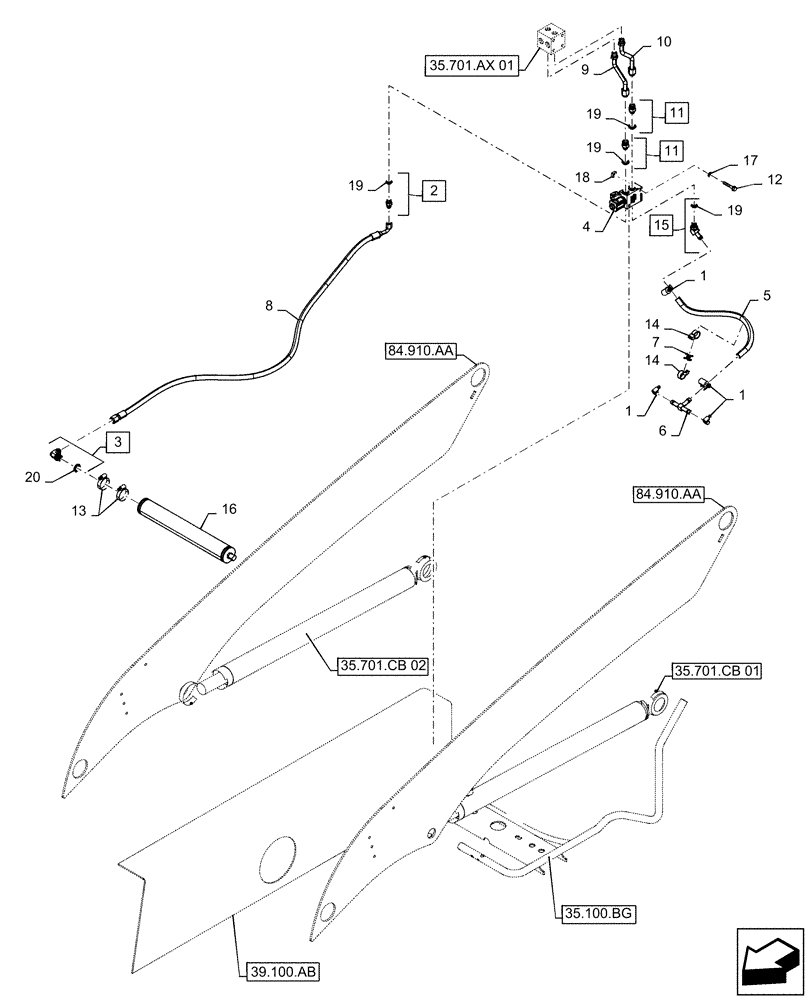

Схема запчастей Case IH TV380 - (35.701.050[01]) - RIDE CONTROL (35) - HYDRAULIC SYSTEMS
84.910.aa
11
4
19
9
17
19
20
1
10
1
18
2
7
11
1
5
13
19
6
15
16
19
14
3
8
14
12
35.100.bg
35.701.ax 01
35.701.cb 01
35.701.cb 02
39.100.ab
84.910.aa

Артикул

Название

Примечание

Количество

1

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

4шт.

2

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 19

1шт.

3

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 20

1шт.

4

47712515

VALVE

Ride Control

1шт.

5

47782375

HOSE,12.7mm ID x 450mm L

Ride Control Oil Return

1шт.

6

84179891

ADAPTER,Tee, 1/2" Hose Barb x 1/2" Hose Barb x 1/2" Hose Barb

1шт.

7

84318895

SPACER,17.97mm H

Swivel Tie Base

1шт.

8

84331280

HOSE,9.53mm ID x 1550mm L, SAE 100R17

Ride Control Valve to Accumulator

1шт.

9

84375899

RIGID TUBE

12.7mm OD, Ride Control Valve to Manifold

1шт.

10

84375901

RIGID TUBE

12.7mm OD, Ride Control Valve to Manifold

1шт.

11

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Incl 19

2шт.

12

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

13

86624194

HOSE CLAMP,1.81” - 2.75”, Worm Gear

2шт.

14

86991009

CABLE TIE,222mm L, Nylon

2шт.

15

87302140

FITTING,45 Degree, 1/2" Hose x 9/16" - 18 ORB Beaded

Incl 19

1шт.

16

87403797

ACCUMULATOR,275 Bar, 0.75L

Ride Control

1шт.

17

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

18

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

19

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

20

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Выбрано товаров: 20
