Запчасти Case IH TV380 (35.357.010) - VALVE, EH HAND CONTROLS W/ HARNESS (35) - HYDRAULIC SYSTEMS

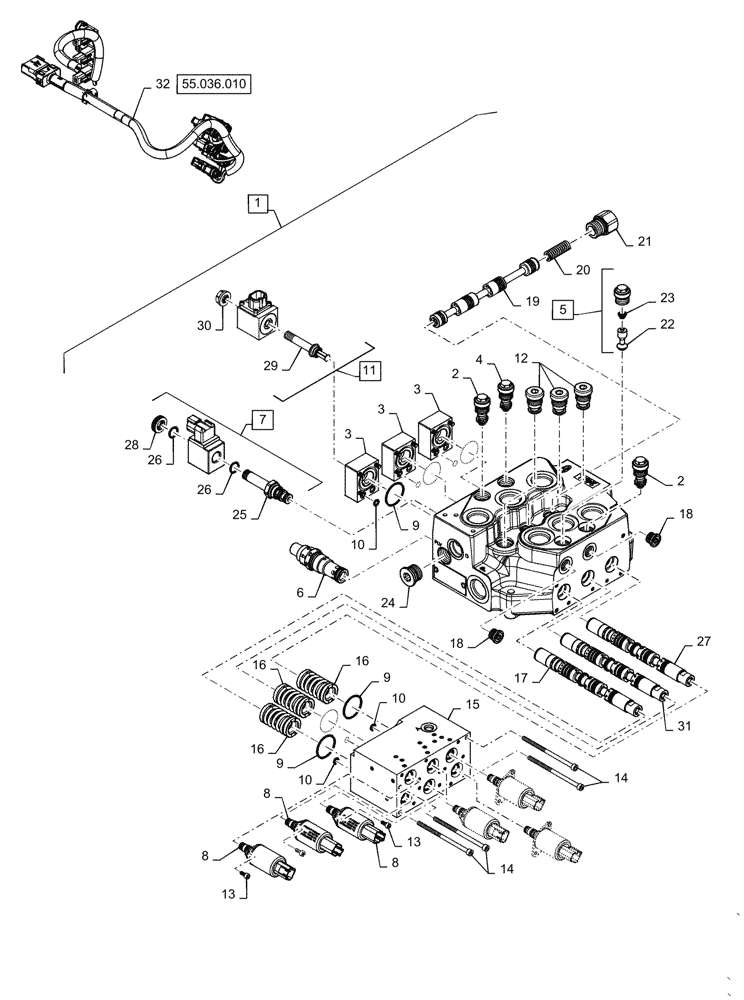

Схема запчастей Case IH TV380 - (35.357.010) - VALVE, EH HAND CONTROLS W/ HARNESS (35) - HYDRAULIC SYSTEMS
55.036.010
8
10
9
26
25
24
18
3
8
3
19
17
21
26
10
28
23
7
27
31
10
12
13
22
6
14
20
8
1
9
3
15
14
32
13
18
16
2
30
11
29
5
16
9
2
16
4

Артикул

Название

Примечание

Количество

1

47735212

CONTROL VALVE

Loader, EH Controls, Incl 2 - 31

1шт.

1

47735212R

Loader, EH Controls

REMAN-HYD VALVE

1шт.

1

47735212C

Return Number

CORE-VALVE HYD

1шт.

2

84386282

VALVE PRESSURE RELIE

225 Bar, Port Relief

2шт.

3

84386296

CAP

Spool Position Sensor, End

3шт.

4

47458153

VALVE

260 Bar, Port Relief

1шт.

5

84386285

HYDRAULIC VALVE

Anti-Cavitation, Incl 22 - 23

1шт.

6

84386287

VALVE PRESSURE RELIE

210 Bar, Port Relief

1шт.

7

84386288

HYDRAULIC VALVE

Solenoid, Incl 25 - 26, 28

1шт.

8

84386289

VALVE, PRESSURE CONT

Pressure Reducing

6шт.

9

84386293

O-RING

EH Spool Cap

6шт.

10

84386294

O-RING

EH Spool Passage

9шт.

11

84386295

SENSOR

Spool Position, Incl 29 - 30

3шт.

12

84386281

CHECK VALVE

Load

3шт.

13

NSS

NOT SOLD SEPARAT

Hydraulic Solenoid Securing Bolt, Incl in 1

12шт.

14

NSS

NOT SOLD SEPARAT

Hydraulic Valve Mounting Bolt, Incl in 1

4шт.

15

NSS

NOT SOLD SEPARAT

Hydraulic Valve Bock, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Spool Spring, Incl in 1

3шт.

17

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

18

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

2шт.

19

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

20

NSS

NOT SOLD SEPARAT

Spool Spring, Incl in 1

1шт.

21

NSS

NOT SOLD SEPARAT

Spool Joint, Incl in 1

1шт.

22

NSS

NOT SOLD SEPARAT

Shutter, Incl in 1, 5

1шт.

23

NSS

NOT SOLD SEPARAT

Conical Spring, Incl in 1, 5

1шт.

24

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

25

NSS

NOT SOLD SEPARAT

Cartridge, Incl in 1, 7

1шт.

26

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1, 7

2шт.

27

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

28

NSS

NOT SOLD SEPARAT

Retaining Nut, Incl in 1, 7

1шт.

29

NSS

NOT SOLD SEPARAT

Cartridge, Incl in 1, 11

3шт.

30

NSS

NOT SOLD SEPARAT

Nut, Incl in 1, 11

3шт.

31

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

32

47806711

WIRE HARNESS

EH Control Valve

1шт.

Выбрано товаров: 34
