Запчасти Case IH TV380 (35.300.030) - HYDRAULIC OIL COOLER (35) - HYDRAULIC SYSTEMS

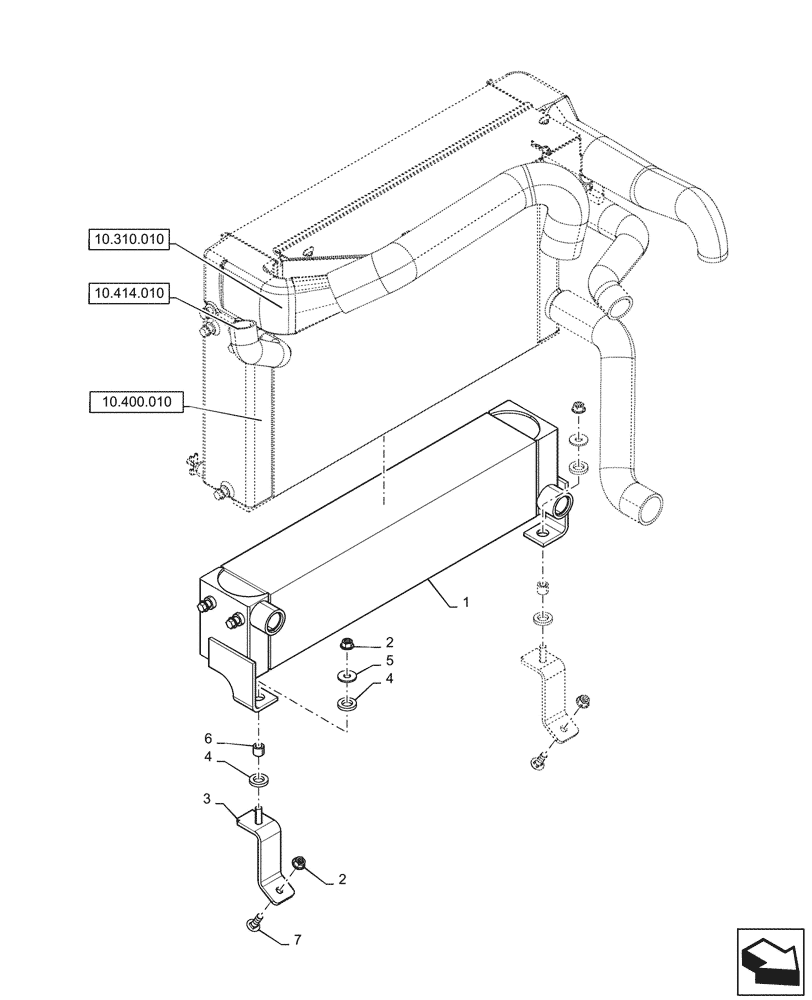

Схема запчастей Case IH TV380 - (35.300.030) - HYDRAULIC OIL COOLER (35) - HYDRAULIC SYSTEMS
10.400.010
2
7
4
1
6
4
2
5
3
10.414.010
10.310.010

Артикул

Название

Примечание

Количество

1

47801215

Standard Fin Density

OIL COOLER

1шт.

1

47823637

Low Fin Density

OIL COOLER

1шт.

2

86619802

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

3

47818613

Oil Cooler Support

ANGLE

2шт.

4

47643491

Oil Cooler Mounting

RUBBER WASHER,17.5mm ID x 30mm OD x 5mm Thk

4шт.

5

86642464

WASHER,11mm ID x 30mm OD x 2.5mm Thk

2шт.

6

435542A1

SPACER,10.74mm ID x 17.15mm OD x 17.8mm L

Bushing

2шт.

7

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

2шт.

Выбрано товаров: 8
