Запчасти Case IH TV380 (35.100.010) - HYDRAULIC SUPPLY LINES PLUMBING (35) - HYDRAULIC SYSTEMS

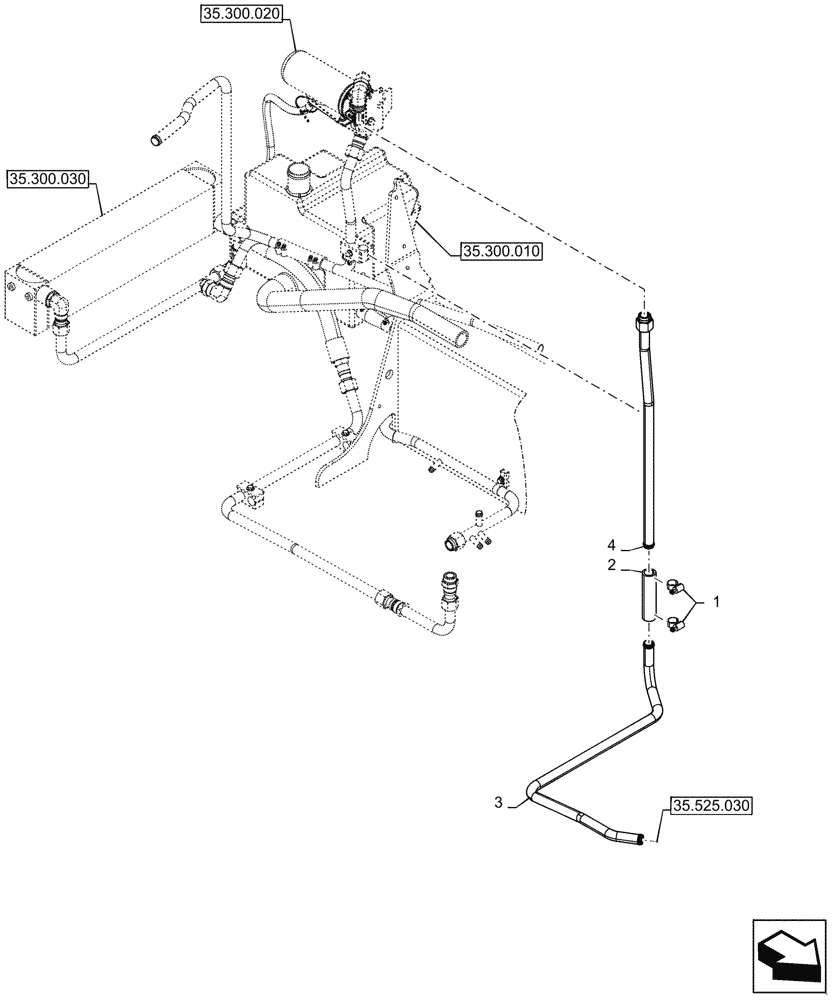

Схема запчастей Case IH TV380 - (35.100.010) - HYDRAULIC SUPPLY LINES PLUMBING (35) - HYDRAULIC SYSTEMS
35.300.020
4
3
2
1
35.300.030
35.525.030
35.300.010

Артикул

Название

Примечание

Количество

1

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

2шт.

2

47641948

HOSE,25mm ID x 143mm L, SAE 100R4

1шт.

3

47884152

25.4mm OD, Tandem Supply

HYD TUBE

1шт.

4

47730815

25.4mm OD, Hydraulic Filter to Pump

TUBE

1шт.

Выбрано товаров: 4
