(90.108.020[02]) - ISO DECALS

Запчасти Case IH TV380 (90.108.020[02]) - ISO DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

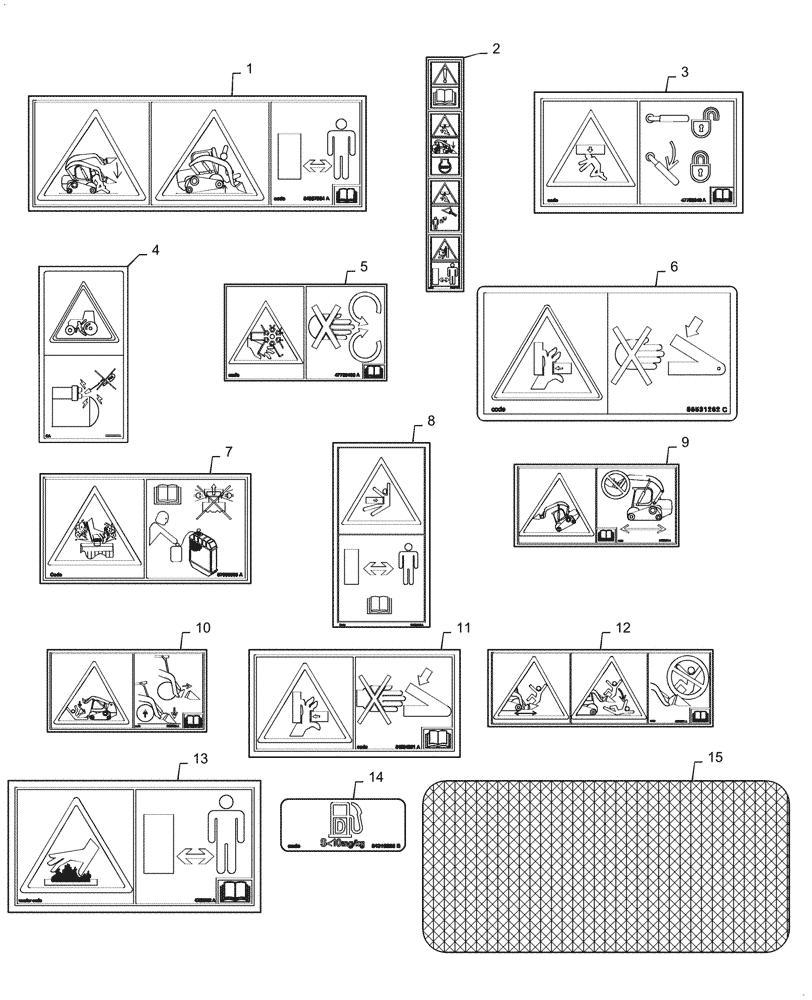

Схема запчастей Case IH TV380 - (90.108.020[02]) - ISO DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
11
13
12
8
4
6
3
10
15
1
9
2
14
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84367564

WARNING DECAL

Crush Hazard

1шт.

2

84367418

WARNING DECAL

Combination

1шт.

3

47739940

WARNING DECAL

Loader Lock

1шт.

4

175509A1

WARNING DECAL

Engine Start

1шт.

5

47739196

WARNING DECAL,80mm x 50mm H

Fan

1шт.

6

86531262

WARNING DECAL

Pinch Point

2шт.

7

87658005

WARNING DECAL

Radiator Cap

1шт.

8

87626172

WARNING DECAL

Keep Distance

2шт.

9

84367573

WARNING DECAL

Tipping Hazard

1шт.

10

84367568

WARNING DECAL

Attachment Crush Hazard

1шт.

11

84394351

WARNING DECAL

Pinch Point

2шт.

12

84374821

WARNING DECAL

No Rider, Man Lift

1шт.

13

47856202

WARNING DECAL

Hot Surface

1шт.

14

84319035

DECAL

Ultra Low Sulfur Fuel

1шт.

15

121573A1

REFLECTOR,94mm L X 44mm W

Red

1шт.
