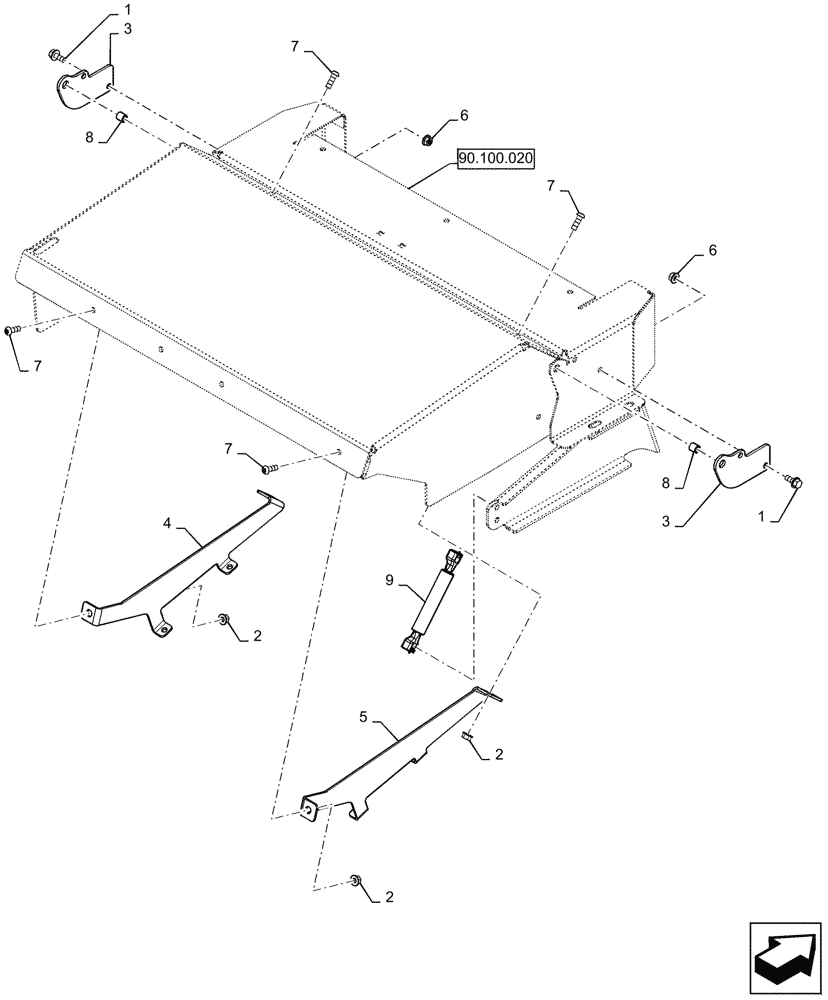

Запчасти Case IH TV380 (90.100.010[02]) - HOOD STRUT, W/ AIR CONDITIONING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

2

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

3

47428367

PLATE

Doubler

2шт.

4

47709985

LH, Tilt Hood

REINFORCEMENT

1шт.

5

47709989

RH, Tilt Hood

REINFORCEMENT

1шт.

6

86619801

FLANGE NUT,M8 x 1.25, Cl 8

4шт.

7

87028323

HEX SOC SCREW,Btn Head, M8 x 1.25 x 25mm, Cl 8.8

4шт.

8

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

2шт.

9

400472A1

SPRING,10mm Rod, 38.1mm Stroke

Hood Assist (A/C)

1шт.
