Запчасти Case IH TV380 (88.100.35[03]) - DIA KIT, HYDRAULIC COUPLER (88) - ACCESSORIES

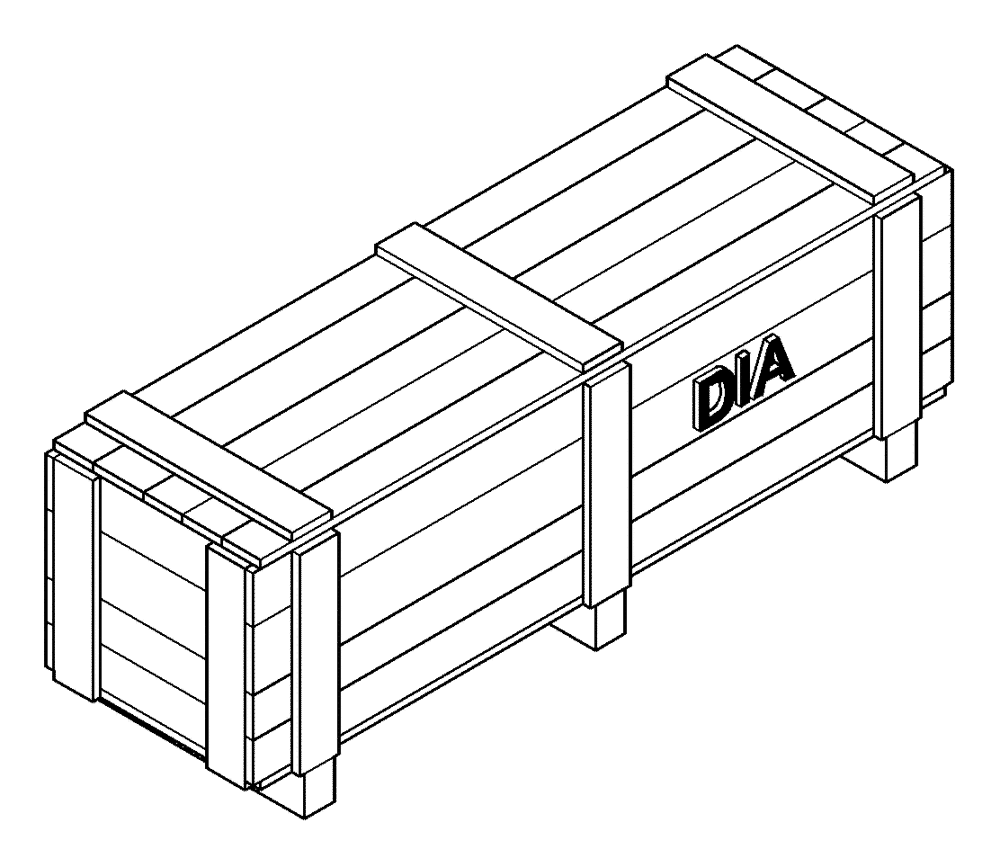

Схема запчастей Case IH TV380 - (88.100.35[03]) - DIA KIT, HYDRAULIC COUPLER (88) - ACCESSORIES

Артикул

Название

Примечание

Количество

1

48007446

KIT

Hydraulic Coupler, Incl 2 - 57

1шт.

2

48007453

INSTRUCTION

Sheet

1шт.

3

47766775

HYDRAULIC CYLINDER

Hydraulic Coupler

2шт.

4

47946828

STEP

Hydraulic Cover

1шт.

5

47964620

HYDRAULIC VALVE

Hydraulic Coupler Check

1шт.

6

86512993

ELBOW,45 Degree, 7/16" - 20 JIC x 7/16" - 20 ORB

Incl 55

2шт.

7

265235

HYD CONNECTOR,7/16" - 20 ORB x 7/16" - 20 JIC

Incl 55

2шт.

8

47600574

ROD,275mm L

Hydraulic Coupler Position Indicator

2шт.

9

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

10

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

11

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

12

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

13

87026500

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8

2шт.

14

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

15

47947213

HYDRAULIC HOSE,6.3mm ID x 357mm L, SAE 100R16

Hydraulic Coupler Cylinder

4шт.

16

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

4шт.

17

47997436

HYDRAULIC HOSE,12.5mm ID x 440mm L

Hydraulic Coupler Drain

1шт.

18

84318895

SPACER,17.97mm H

Swivel

1шт.

19

86991009

CABLE TIE,222mm L, Nylon

2шт.

20

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.

21

87342191

SPACER,9.25mm ID x 13.72mm OD x 9.53mm L

1шт.

22

84254052

HOSE CLAMP,19.1mm W x 31.9mm L

1шт.

23

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

24

47401099

HOSE,36.1mm ID x 825mm L

1шт.

25

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

1шт.

26

87307884

CLAMP,27mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

27

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

28

84256406

HYDRAULIC VALVE

Hydraulic Coupler

1шт.

29

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

Incl 56

1шт.

30

87301276

HYD CONNECTOR,45 Degree, 9/16" - 18 ORB x 3/4" - 16 JIC

Incl 56

1шт.

31

47539004

TUBE

Hydraulic Coupler

1шт.

32

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

33

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

34

87301490

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, J Type

1шт.

35

84251346

SWITCH

Hydraulic Coupler Rocker

1шт.

36

84546403

BRANCH TEE,1-1/16" - 12 ORB x 1-1/16" - 12 JIC x 3/4" - 16 JIC

Incl 57

1шт.

37

84179891

ADAPTER,Tee, 1/2" Hose Barb x 1/2" Hose Barb x 1/2" Hose Barb

1шт.

38

84555943

HYD TUBE

Hydraulic Coupler Chassis

1шт.

39

84555945

HYD TUBE

Hydraulic Coupler Chassis

1шт.

40

84555947

HYDRAULIC HOSE,6.35mm ID x 565mm L, SAE 100R17

2шт.

41

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

2шт.

42

604896

CLAMP,Dual, 3/8" Hose, 6mm Bolt

2шт.

43

86511840

BOLT,Hex Flng, M6 x 1 x 40mm, Cl 8.8

2шт.

44

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

45

87313351

CLIP,25.4mm, Coat, 8.7mm Bolt Hole, J Type

1шт.

46

87752074

SCREW,HWH, M8 x 1.25 x 16mm

1шт.

47

84551177

HYD TUBE

Hydraulic Tube

1шт.

48

84555936

HYD TUBE

Hydraulic Tube

1шт.

49

84281694

HOSE ASSY.,6.35mm ID x 1845mm L, SAE 100R17

2шт.

50

605025

CLAMP,3/8", Coated, 3/8" Bolt

1шт.

51

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

1шт.

52

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

53

47984260

HYDRAULIC HOSE,6.3mm ID x 870mm L, SAE 100R17

Step to Coupler

2шт.

54

47978514

TUBE

Bead Adapter

1шт.

55

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4шт.

56

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

57

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Выбрано товаров: 57
