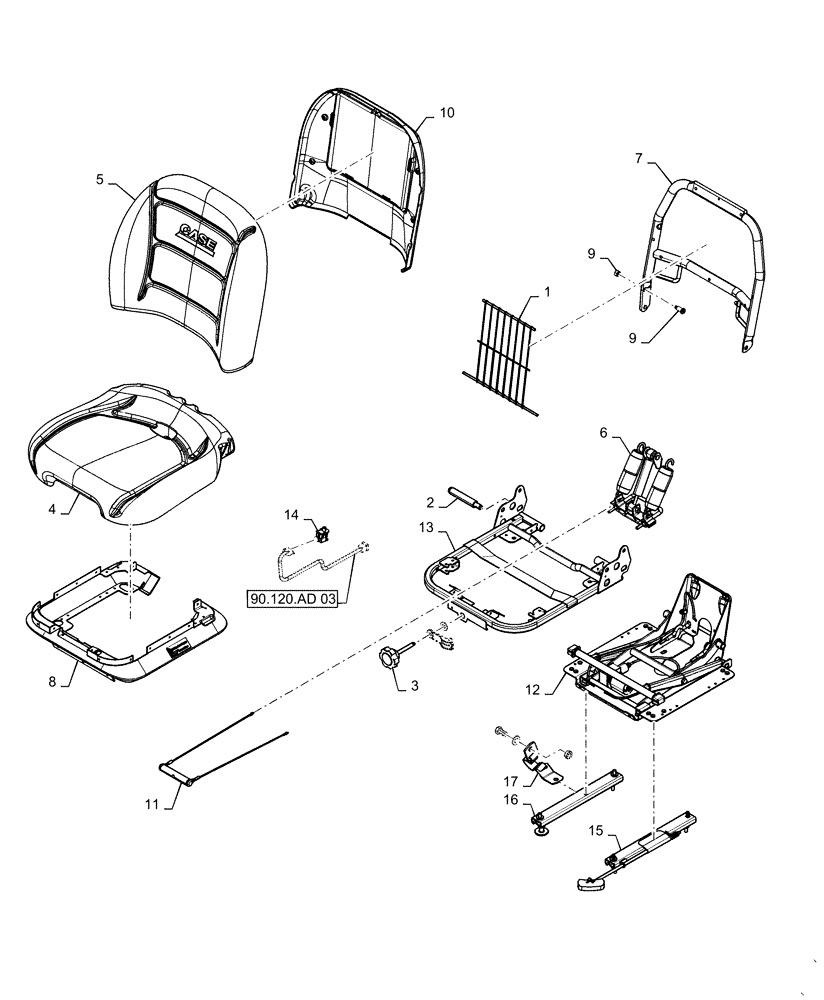

Запчасти Case IH TV380 (90.120.AD[02]) - SUSPENSION SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84559391

SERVICE KIT

Spring and Saddle

1шт.

2

84559392

SERVICE KIT

Bearing

1шт.

3

84559393

SERVICE KIT

Knob

1шт.

4

84551066

SERVICE KIT

Seat Base Cushion

1шт.

5

84551069

SERVICE KIT

Back Cushion

1шт.

6

84559399

SERVICE KIT

Shock Absorber

1шт.

7

84559409

SERVICE KIT

Back Frame

1шт.

8

84559402

SERVICE KIT

Boot

1шт.

9

84559403

SERVICE KIT

Pivot Bolt

1шт.

10

84559404

SERVICE KIT

Bumper and Misc.

1шт.

11

84559405

SERVICE KIT

Weight Adjust

1шт.

12

84559406

SERVICE KIT

Suspension Base Assy

1шт.

13

84559408

SERVICE KIT

Seat Frame

1шт.

14

84559411

SERVICE KIT

Seat Switch

1шт.

15

84559412

SERVICE KIT

Linkage Assy

1шт.

16

84559416

SERVICE KIT

Slide

1шт.

17

84559418

SERVICE KIT

Tether

1шт.
