Запчасти Case IH TV380 (39.100.AB) - CHASSIS, VERTICAL UPPER FRAME (39) - FRAMES AND BALLASTING

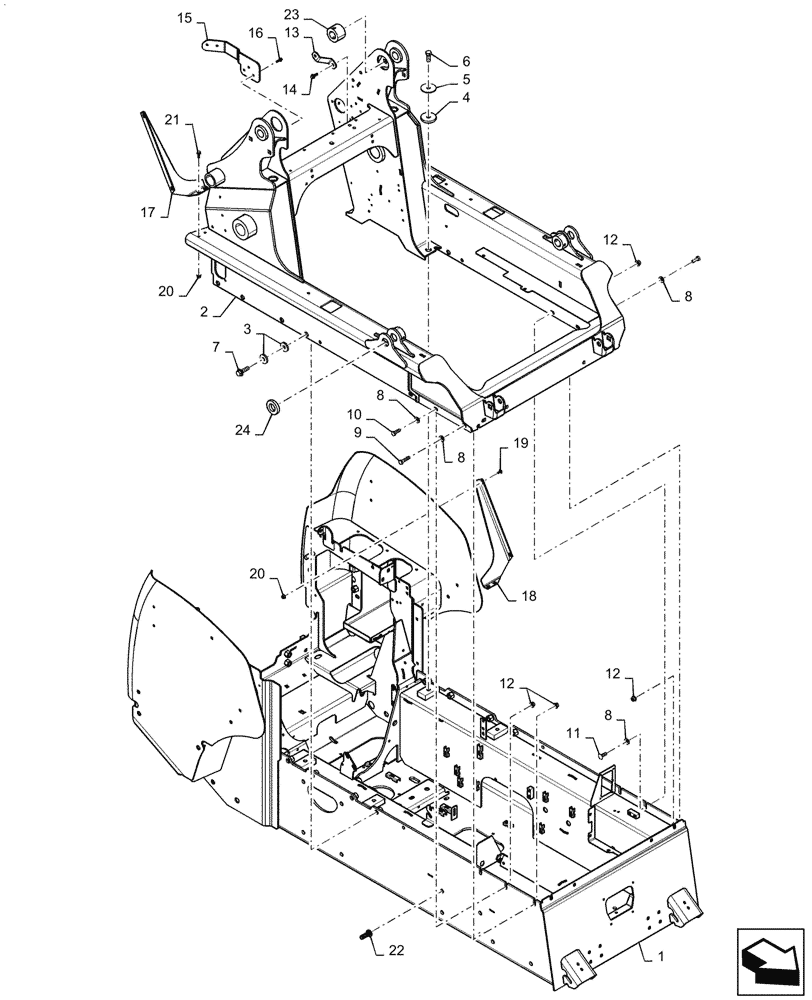

Схема запчастей Case IH TV380 - (39.100.AB) - CHASSIS, VERTICAL UPPER FRAME (39) - FRAMES AND BALLASTING
8
16
10
19
3
24
11
2
12
21
20
12
8
17
14
23
20
6
12
9
8
15
8
13
18
4
5
1
7
22

Артикул

Название

Примечание

Количество

1

NS

NOT SERVICED

Lower Frame, Tan

1шт.

2

47643363

Upper, Gray, Years: -22-JAN-17

FRAME

1шт.

2

47912526

Upper, Grey, Start Year: 23-JAN-17

FRAME

1шт.

3

86592702

WASHER,17mm ID x 45mm OD x 6mm Thk

16шт.

4

84298254

PLATE

Rear Mount, Gray

4шт.

5

87687021

WASHER,17.3mm ID x 70mm OD x 4.5mm Thk

4шт.

6

374835

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

7

87698849

BOLT,M16 x 50mm, Cl 10.9

8шт.

8

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

10шт.

9

337476

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

1шт.

10

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

8шт.

11

87035385

CARRIAGE BOLT,Sht Sq Nk, M12 x 35mm, Cl 8.8, Full Thd

1шт.

12

86512497

FLANGE NUT,M12 x 1.75, Cl 10

10шт.

13

47593313

LH, SCR, Gray

SUPPORT

1шт.

14

87550233

SELF-TAP SCREW,Hex Flg, M10 x 1.5 x 25mm

1шт.

15

47640716

Fuel Filter

BRACKET

1шт.

16

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

3шт.

17

47618048

SUPPORT

RH, Wrapper Gray

1шт.

18

47618050

SUPPORT

LH, Wrapper Gray

1шт.

19

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

20

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

8шт.

21

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

22

84162937

STUD,M16 x 50mm, Cl 9.8

Axle Mount

20шт.

23

84201518

HUB,38.5mm ID x 69.85mm OD x 48.5mm L

Upper Frame to H-Link

2шт.

24

86521978

HUB,38.23mm ID x 69.85mm OD x 12.7mm L

Upper Frame to Boom Lift Cylinder

2шт.

Выбрано товаров: 25
