Запчасти Case IH TV380 (35.734.AH [01]) - HYDRAULIC COUPLER, CHASSIS PLUMBING (35) - HYDRAULIC SYSTEMS

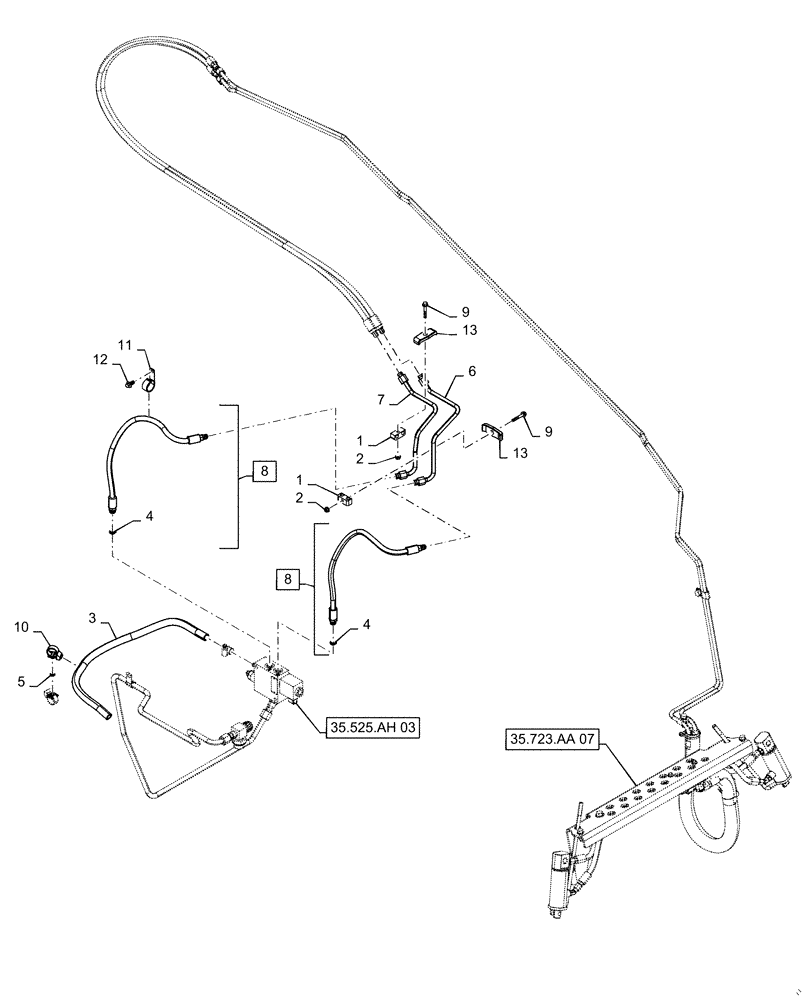

Схема запчастей Case IH TV380 - (35.734.AH [01]) - HYDRAULIC COUPLER, CHASSIS PLUMBING (35) - HYDRAULIC SYSTEMS
35.723.aa 07
1
9
2
4
2
9
12
8
8
5
10
13
11
6
13
7
1
3
4
35.525.ah 03

Артикул

Название

Примечание

Количество

1

604896

CLAMP,Dual, 3/8" Hose, 6mm Bolt

2шт.

2

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

3

84201227

Hydraulic Coupler Drain

HOSE,12.7mm ID x 615mm L

1шт.

4

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

5

84318895

SPACER,17.97mm H

Swivel Tie Base

1шт.

6

84555943

HYD TUBE

9.53mm OD x 439.0mm L, Coupler Chassis

1шт.

7

84555945

HYD TUBE

9.53mm OD x 414.4mm L, Coupler Chassis

1шт.

8

84555947

HYDRAULIC HOSE,6.35mm ID x 565mm L, SAE 100R17

Coupler, Incl 4

2шт.

9

86511840

BOLT,Hex Flng, M6 x 1 x 40mm, Cl 8.8

2шт.

10

86991009

CABLE TIE,222mm L, Nylon

Nylon

2шт.

11

87313351

CLIP,25.4mm, Coat, 8.7mm Bolt Hole, J Type

, Years: -19-JUL-16

1шт.

12

87752074

SCREW,HWH, M8 x 1.25 x 16mm

, Years: -19-JUL-16

1шт.

13

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

Hydraulic Hose, Cover

2шт.

Выбрано товаров: 13
