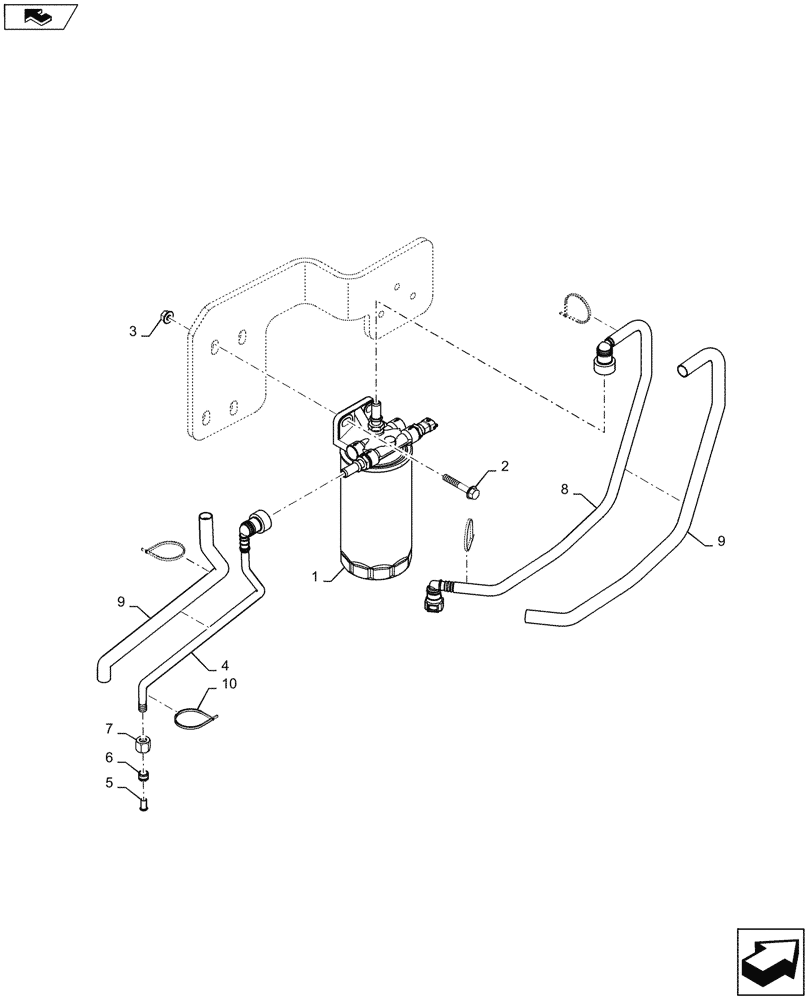

Запчасти Case IH TV380 (10.206.AG[01]) - VERTICAL, FUEL FILTER AND LINES (10) - ENGINE

1

84525901

Assy, 191mm OAL

FUEL FILTER

1шт.

Includes Filter Element

1шт.

Engine Bay

1шт.

1

84534796

ELEMENT,Spin-on, M20 x 1.5, 96mm OD x 195mm L

Element

1шт.

2

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

3

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

4

84552136

Vertical Line

FUEL TUBE

1шт.

5

84546407

Compression

SLEEVE,6.5mm ID x 10mm OD x 15mm L

1шт.

6

84546409

Compression

RING,10mm

1шт.

7

84546410

Compression

NUT,M16 x 1.5 - 10mm, 15.50mm High

1шт.

8

84557157

FUEL TUBE

1шт.

9

87580074

CONDUIT,Bulk, 12.95mm ID x 17.32mm OD x 15240mm L

44"

1шт.

10

L11541

CABLE TIE,203.2mm L, Nylon

4шт.
