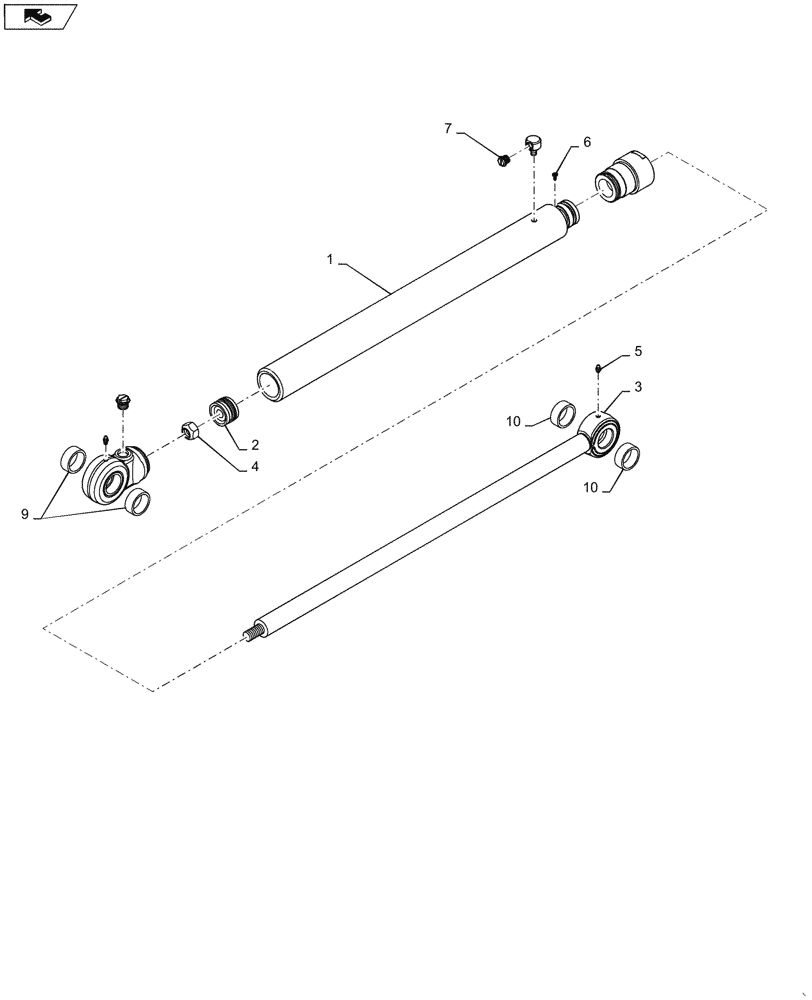

Запчасти Case IH TV380 (35.730.01) - HYDRAULIC LIFT CYLINDER, LH (SV300,TV380) BEFORE JULY 31, 2013 (35) - HYDRAULIC SYSTEMS

-

84558165

Hydraulic, LH Lift, 69.9 X 50.8, Incl. 1-7

CYLINDER,Double Acting, 50.8mm Rod, 886.5mm Stroke

1шт.

1

NSS

NOT SOLD SEPARAT

Tube, W LH 69.9 Bore

1шт.

2

NSS

NOT SOLD SEPARAT

Piston-Gland, 69.9 X 50.8

1шт.

3

84558175

Rod W, 50.8 DIA

PISTON ROD

1шт.

4

280724

LOCK NUT,3/4" - 16

1шт.

5

86977989

LUBE NIPPLE,90 Degree, 1/8" - 27 NPT, Leakproof

1шт.

6

87414

LUBE NIPPLE,1/4" - 28

1шт.

7

86625120

PLUG,Sltd Hd, 3/4"-16, Yellow, Plastic

3/4-16

2шт.

8

84530079

(Not Shown) Cylinder Repair Kit

SERVICE KIT

1шт.

9

84241617

BUSHING,38.35mm ID x 47.62 OD x 18.8mm L

Barrell End

2шт.

10

84298801

BUSHING,38.35mm ID x 47.62 OD x 22.8mm L

Rod Eye

2шт.
