Запчасти Case IH TV380 (35.730.01[02]) - HYDRAULIC LIFT CYLINDER, LH (SV300,TV380) AFTER JULY 31, 2013 (35) - HYDRAULIC SYSTEMS

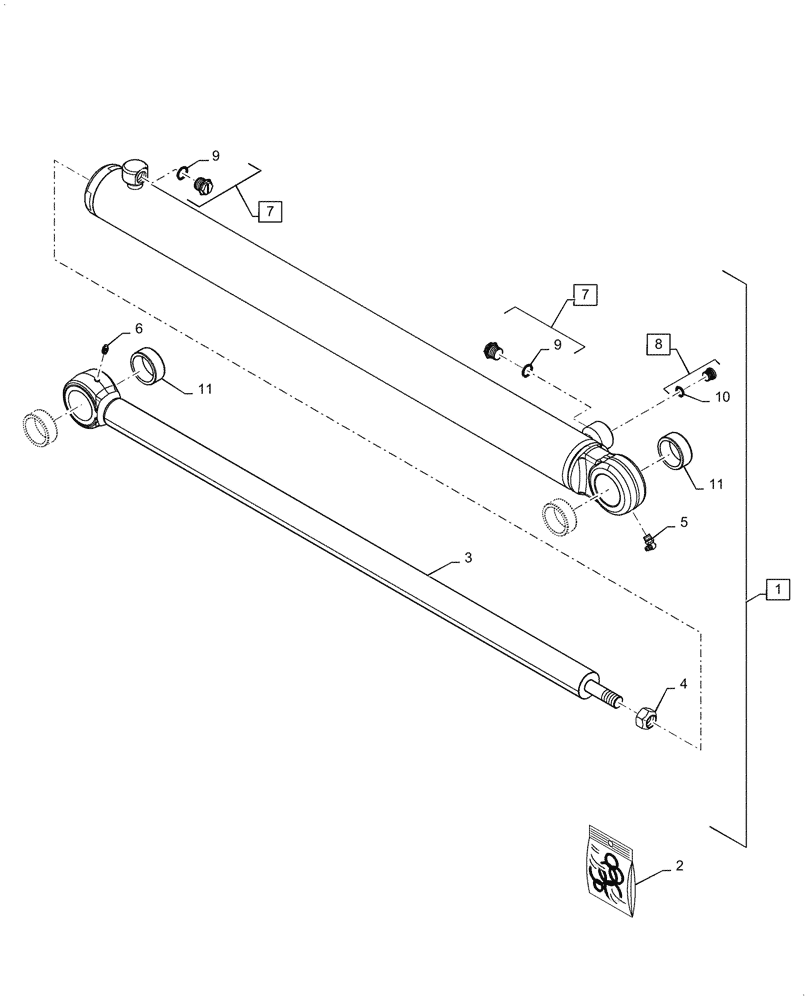

Схема запчастей Case IH TV380 - (35.730.01[02]) - HYDRAULIC LIFT CYLINDER, LH (SV300,TV380) AFTER JULY 31, 2013 (35) - HYDRAULIC SYSTEMS
9
7
2
11
8
5
4
3
1
11
9
10
7
6

Артикул

Название

Примечание

Количество

1

47416033

HYDRAULIC CYLINDER,Double Acting, 44.5mm Rod, 886.5mm Stroke

Lift, Incl 3 - 11

1шт.

2

47416073

KIT

Seal, Services 1

1шт.

3

47416066

ROD

44.5mm OD

1шт.

4

280724

LOCK NUT,3/4" - 16

1шт.

5

86977989

LUBE NIPPLE,90 Degree, 1/8" - 27 NPT, Leakproof

1шт.

6

87414

LUBE NIPPLE,1/4" - 28

1шт.

7

86625120

PLUG,Sltd Hd, 3/4"-16, Yellow, Plastic

Incl 9

2шт.

8

9625178

PLUG,9/16" - 18 ORB

Incl 10

1шт.

9

NSS

NOT SOLD SEPARAT

Incl in 7

2шт.

10

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

84298801

BUSHING,38.35mm ID x 47.62 OD x 22.8mm L

4шт.

Выбрано товаров: 11
