Запчасти Case IH TV380 (35.359.01[02]) - PUMP, EH AND CONTROL VALVE (TR320,TV380) (35) - HYDRAULIC SYSTEMS

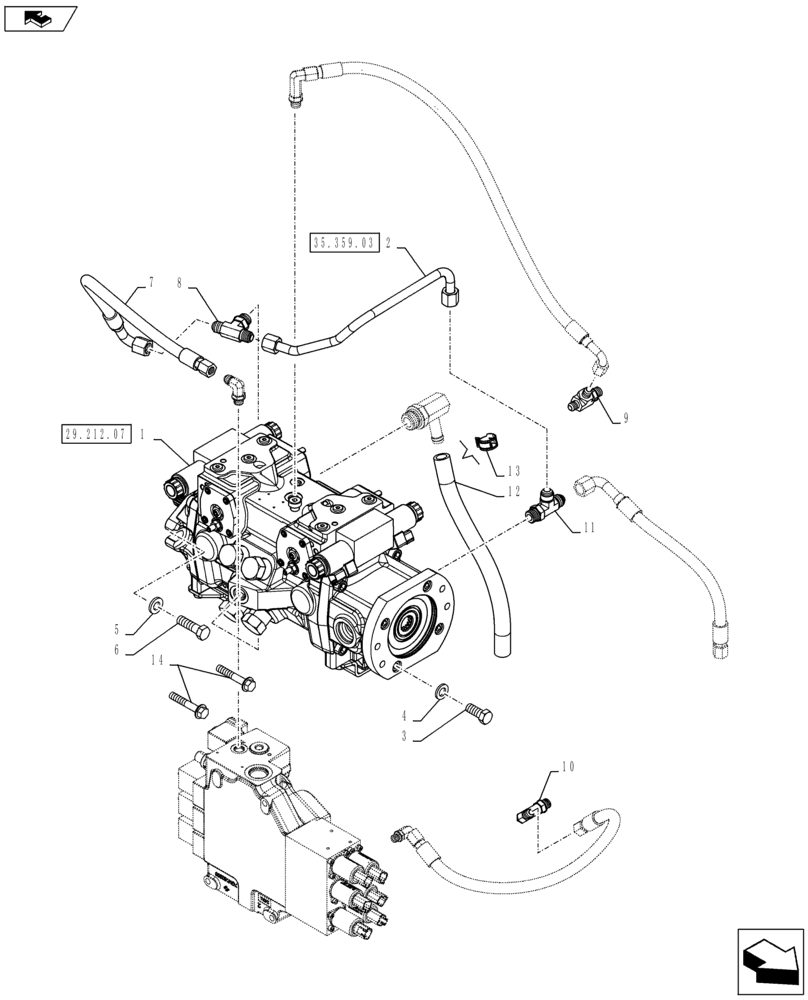

Схема запчастей Case IH TV380 - (35.359.01[02]) - PUMP, EH AND CONTROL VALVE (TR320,TV380) (35) - HYDRAULIC SYSTEMS
home
10
8
1
4
1
3
6
7
13
14
29.212.07
2
35.359.03
1
5
12
9

Артикул

Название

Примечание

Количество

1

84295013

EH, 46cc, 360BAR

HYDRAULIC PUMP,45 CC

1шт.

1

84295013R

EH, 46cc, 360BAR

REMAN-HYD PUMP

1шт.

1

84295013C

Return Number

CORE-HYDRAULIC PUMP

1шт.

1

47374656

EH, 45cc A22VG ET S40, Years: 01-JUL-13-24-AUG-15

HYDROSTATIC PUMP,45 CC

1шт.

1

47775931

PUMP

Tandem, EH Controls, Start Year: 25-AUG-15

1шт.

2

84349300

RIGID TUBE,12.7mm OD

Hydraulic, EH, Charge Supply

1шт.

3

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

4

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

5

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

6

9790095

BOLT,1/2" - 13 x 1-3/4", Gr 8

2шт.

7

84299736

FLEXIBLE HOSE,9.53mm ID x 512mm L, SAE 100R17

Assembly, EH, LV Interlock

1шт.

8

86513024

TEE,3/4" - 16 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

9

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

10

86526

ELBOW,90 Degree, 37 Degree 9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

11

265808

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

12

84273645

HOSE,15.88mm ID x 327mm L

Pump Drain

1шт.

13

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

Spring

2шт.

14

9804265

FLANGE BOLT,Hex, M10 x 60mm, Cl 8.8

2шт.

Выбрано товаров: 18
