Запчасти Case IH TV380 (35.359.01[01]) - PUMP, EH AND CONTROL VALVE (TR320,TV380) (35) - HYDRAULIC SYSTEMS

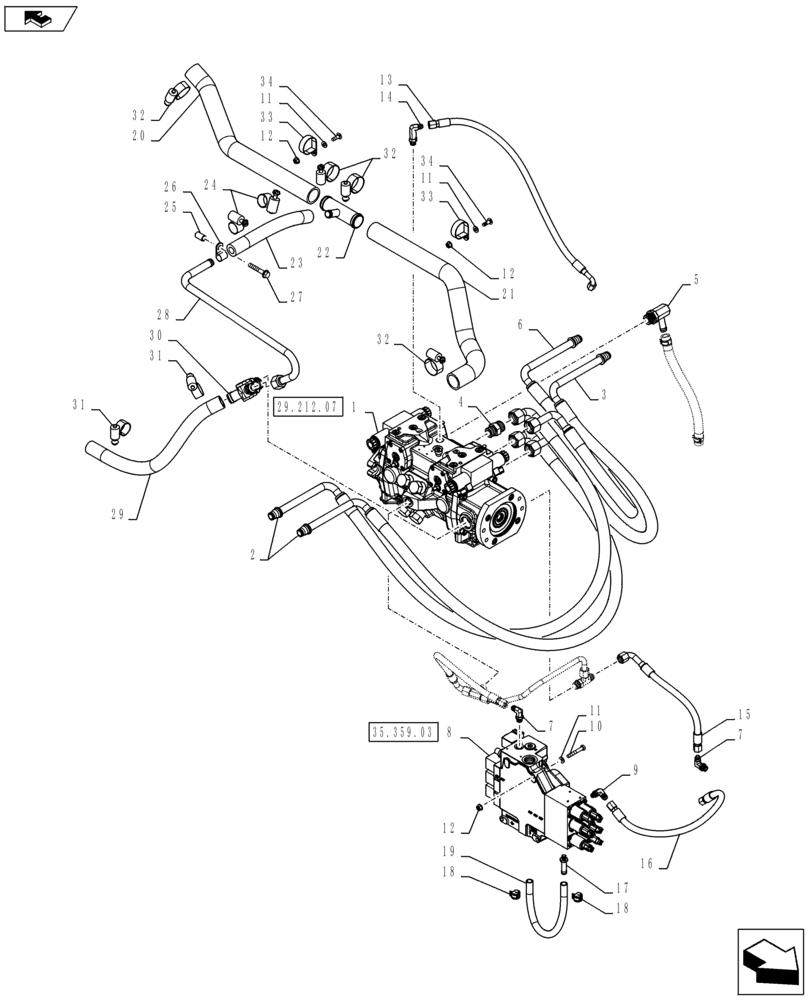

Схема запчастей Case IH TV380 - (35.359.01[01]) - PUMP, EH AND CONTROL VALVE (TR320,TV380) (35) - HYDRAULIC SYSTEMS
19
30
6
18
18
1
23
33
31
7
21
1
15
22
32
3
2
13
32
33
14
31
1
16
12
28
1
34
29
25
8
34
12
32
home
4
1
5
1
24
1
26
35.359.03
17
12
9
20
7
29.212.07
27
10

Артикул

Название

Примечание

Количество

1

84295013

EH, 46cc, 360BAR

HYDRAULIC PUMP,45 CC

1шт.

1

84295013R

EH, 46cc, 360BAR

REMAN-HYD PUMP

1шт.

1

84295013C

Return Number

CORE-HYDRAULIC PUMP

1шт.

1

47374656

EH, 45cc, A22VG ET S40, Years: 01-JUL-13-24-AUG-15

HYDROSTATIC PUMP,45 CC

1шт.

1

47775931

PUMP

Tandem, EH controls, Start Year: 25-AUG-15

1шт.

2

84280500

Assembly, Loop

FLEXIBLE HOSE,19.05mm ID x 1533mm L, SAE 100R19

2шт.

3

84280499

Assembly, Loop

FLEXIBLE HOSE,19.05mm ID x 959mm L, SAE 100R19

1шт.

4

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

4шт.

5

84273629

FITTING,1-1/16" - 12 ORB x M10 x 1 x 5/8" Hose Barb

M10 X 1

1шт.

6

84306250

Assembly, Loop, Also Order 84277066

FLEXIBLE HOSE,19.05mm ID x 959mm L, SAE 100R19

1шт.

6

84277066

Female, HP Quick Lok

ADAPTER,- 12 Fem Quick Lock HP x 1-1/16" - 12, - A3512 ORB

1шт.

7

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

8

84312508

Valve, EH, Control

HYDRAULIC VALVE

1шт.

8

84312508R

REMAN-HYD VALVE

Valve, EH, Control

1шт.

8

84312508C

CORE-VALVE HYD

Return Number

1шт.

9

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

1шт.

10

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

3шт.

11

87655042

M8, 8.80 X 17.5 X 2.2 HTS

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

5шт.

12

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

13

84309599

FLEXIBLE HOSE,9.53mm ID x 780mm L, SAE 100R17

Assembly, EH, Brake Nor

1шт.

14

86526

ELBOW,90 Degree, 37 Degree 9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

15

84299737

FLEXIBLE HOSE,9.53mm ID x 377.8mm L, SAE 100R17

Assembly, EH, Brake Charge

1шт.

16

84288343

FLEXIBLE HOSE,9.53mm ID x 750mm L, SAE 100R17

Assembly, EH, Control to Brake

1шт.

17

87314487

Bead, Hose, 1/2in

HYD CONNECTOR,7/16" - 20 ORB x 1/2" Hose Barb

1шт.

18

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

2шт.

19

84373394

EH Aux to EH Aux Drain

HOSE,12.7mm ID x 410mm L

1шт.

20

84349292

Gear Pump, Suction

HOSE,38.1mm ID

1шт.

21

84349296

HOSE,38.1mm ID

Gear Pump, Suction

1шт.

22

84344919

-24 Bead, -24 Bead, -12 Bead

TEE

1шт.

23

84344942

HOSE,19.05mm OD x 280mm L

Tandem Supply

1шт.

24

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

2шт.

25

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

1шт.

26

86637999

CLAMP,19mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

27

9804265

FLANGE BOLT,Hex, M10 x 60mm, Cl 8.8

3шт.

28

84344928

Hydraulic, Tandem Supply

RIGID TUBE,19.05mm OD

1шт.

29

84349307

HOSE,25.4mm ID x 530mm L, SAE 100R4

Charge Supply

1шт.

30

84344925

45 ELBOW,1-5/16" - 12 ORB x 1-1/16" - 12 JIC x -16 Hose Barb

-16MB, -16 Bead, -12MJ

1шт.

31

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

2шт.

32

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

4шт.

33

84265306

CLAMP,47.6mm, Coat, 8.7mm Bolt Hole, P Type

47.6MM M8 Bolt ZND

2шт.

34

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

2шт.

35

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Not Shown

1шт.

Выбрано товаров: 42
