Запчасти Case IH TV380 (35.220.02[03]) - AUXILIARY HYDRAULIC, HIGH FLOW, CHASSIS PLUMBING (SV300,TV380) (35) - HYDRAULIC SYSTEMS

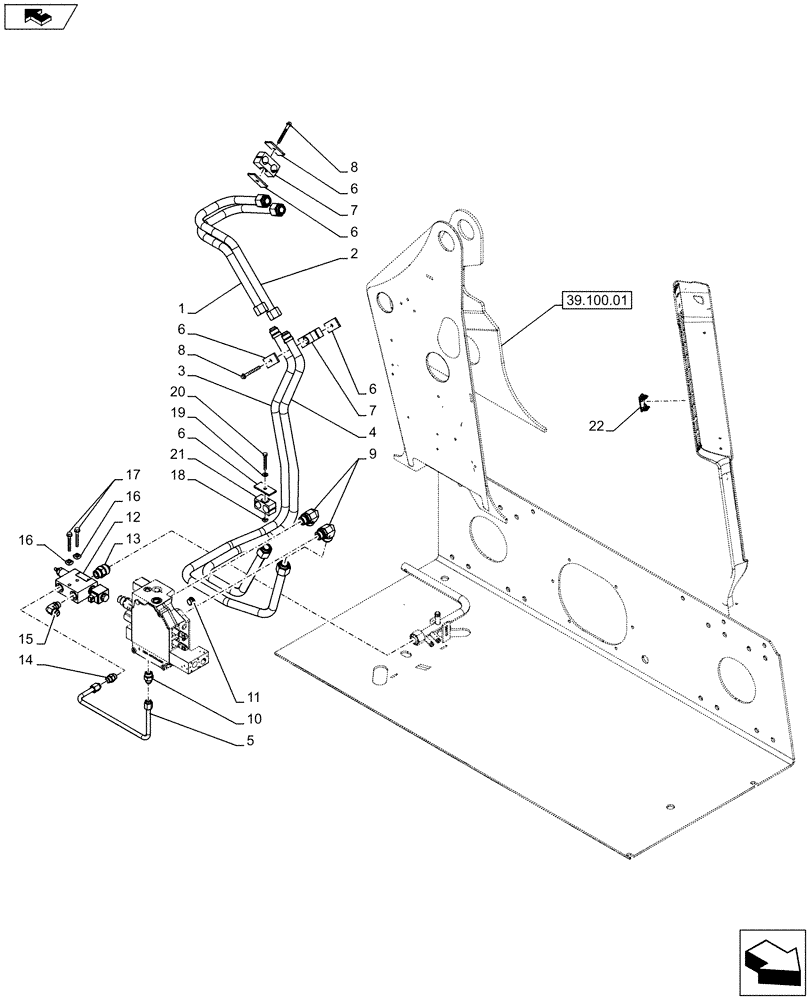

Схема запчастей Case IH TV380 - (35.220.02[03]) - AUXILIARY HYDRAULIC, HIGH FLOW, CHASSIS PLUMBING (SV300,TV380) (35) - HYDRAULIC SYSTEMS
5
6
12
1
8
16
18
7
6
2
14
6
19
17
16
21
22
1
9
39.100.01
7
20
15
home
4
3
6
8
13
6
10
1

Артикул

Название

Примечание

Количество

1

84377529

Aux, High Flow, LH Tower

TUBE

1шт.

2

84377527

Aux, High Flow, LH Tower

TUBE

1шт.

3

84377514

TUBE

Aux, High Flow, LDR Valve to LFT Tower

1шт.

4

84377512

TUBE

Aux, High Flow, LDR Valve to LFT Tower

1шт.

5

84186155

Assembly, High Flow, Valve to LDR Valve, Years: -05-JAN-16

TUBE

1шт.

5

47900681

HYD TUBE

High Flow Valve to Loader Valve, Start Year: 06-JAN-15

1шт.

6

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

Bar

5шт.

7

1546028C1

CLAMP,25.4mm ID x 82mm L

2шт.

8

84323488

SELF-TAP SCREW,Hex Flg, M8 x 70mm

Tapping, M8 X 70 FLGHD

2шт.

9

286217

90 ELBOW,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

2шт.

10

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.

11

84373460

PLUG,23.8mm OD

Load Check

1шт.

12

84256405

HYDRAULIC VALVE

High Flow, Combiner, See Ref. 23-25 For Additional Info.

1шт.

13

86512926

HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

14

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.

15

86527

90 ELBOW,7/8" - 14 JIC x 3/4" - 16 ORB

1шт.

16

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

2шт.

17

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

18

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

Square

1шт.

19

87655042

M8, 8.80 X 17.5 X 2.2 HTS

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

20

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

21

225529A1

CLAMP,Dual, 25.4mm ID

Clamp Tube

1шт.

22

84251427

SWITCH

Rocker, High Flow

1шт.

23

84304585

SEAL KIT

Seal Kit, High Flow Combiner (Not Shown)

1шт.

24

84304583

POPPET

Poppet, Valve, High Flow Combiner (Not Shown)

1шт.

25

84390144

COIL

High Flow Combiner (Not Shown)

1шт.

Выбрано товаров: 26
