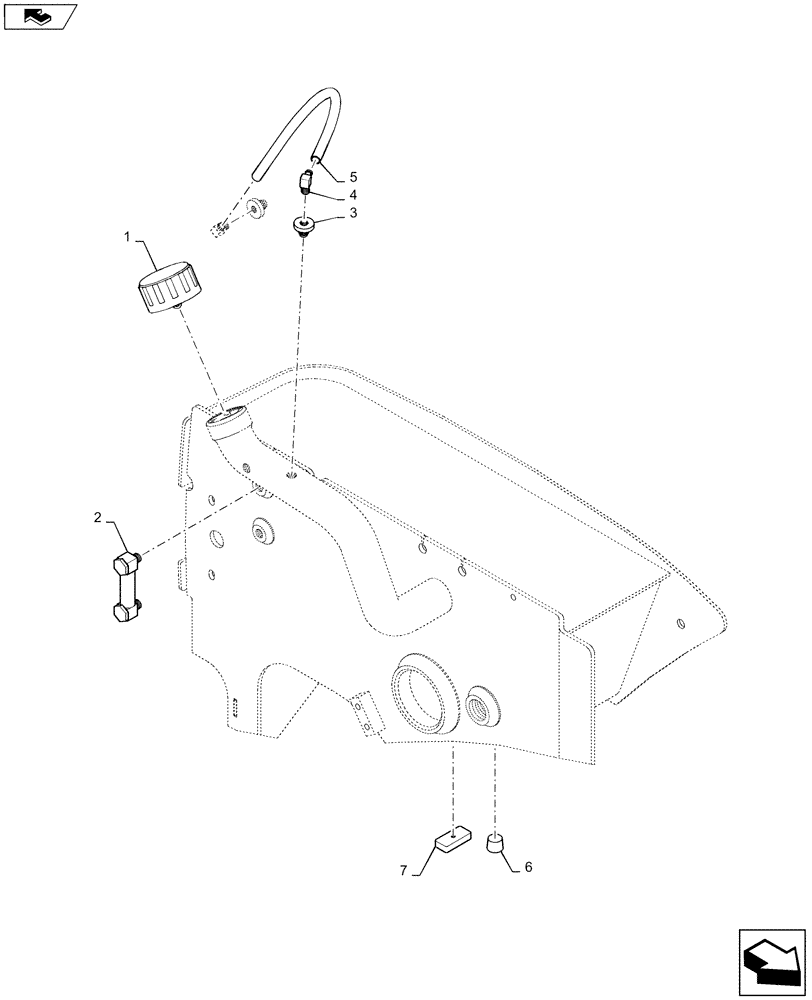

Запчасти Case IH TV380 (35.300.AQ) - TANK, HYDRAULIC (SV250,SV300,TV380) (35) - HYDRAULIC SYSTEMS

1

257448A1

CAP

1шт.

2

84344624

Liquid Level , Years: -01-OCT-13

GAUGE

1шт.

2

47503058

Liquid Level, Years: 02-OCT-13-14-JUN-14

GAUGE

1шт.

2

47641996

Liquid Level, Start Year: 15-JUN-14

GAUGE

1шт.

3

86532842

BUSHING,9.2mm ID x 14.22mm OD x 16mm L

2шт.

4

86532841

90 ELBOW,5/16" Hose Barb

2шт.

5

84355847

HOSE,7.94mm ID x 440mm L, SAE 30R2

Hydraulic Tank Vent

1шт.

6

647429

DRAIN PLUG,Sq Soc HD, 1/2" - 14, NPTF

1шт.

7

328955A1

MAGNET,22.23mm W x 47.63mm L x 9.91mm Thk

1шт.
